HM Cota Repsol 20102010 HM Cota Repsol specifications, pictures, reviews and rating |

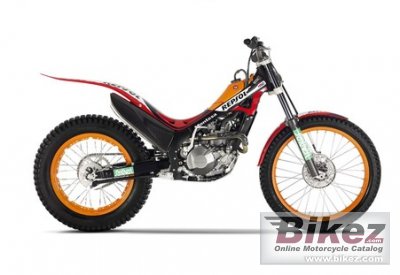

![]() Picture credits - HM. Click to submit more pictures. |
|
General information | |
---|---|
Model: | HM Cota Repsol |
Year: | 2010 |
Category: | Trial |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Price as new (MSRP): | Euro 8550. Prices depend on country, taxes, accessories, etc. |
Engine and transmission | |
Displacement: | 249.10 ccm (15.20 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Compression: | 10.5:1 |
Bore x stroke: | 76.5 x 54.2 mm (3.0 x 2.1 inches) |
Valves per cylinder: | 4 |
Fuel system: | Injection. PGM-FI |
Fuel control: | Single Overhead Cams (SOHC) |
Ignition: | CDI |
Cooling system: | Liquid |
Gearbox: | 5-speed |
Transmission type, final drive: | Chain |
Clutch: | Mulitplate in oil bath |
Chassis, suspension, brakes and wheels | |
Front tyre: | 2.75-21 |
Rear tyre: | 4.00-18 |
Front brakes: | Single disc |
Front brakes diameter: | 185 mm (7.3 inches) |
Rear brakes: | Single disc |
Rear brakes diameter: | 150 mm (5.9 inches) |
Physical measures and capacities | |
Dry weight: | 73.8 kg (162.7 pounds) |
Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
Overall height: | 1,140 mm (44.9 inches) |
Overall length: | 2,016 mm (79.4 inches) |
Overall width: | 830 mm (32.7 inches) |
Ground clearance: | 335 mm (13.2 inches) |
Wheelbase: | 1,321 mm (52.0 inches) |
Fuel capacity: | 2.00 litres (0.53 gallons) |
Other specifications | |
Color options: | Black/orange |
Starter: | Electric & kick |
Comments: | HM is an abbreviation of Honda Montesa in Italy. |
