11 Harley-Davidson XR 1200X specificationsHarley-Davidson XR 1200X 2011

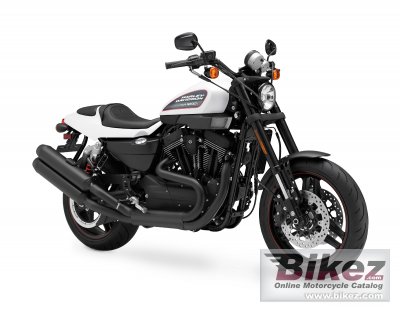

2011 Harley-Davidson XR 1200X photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2011 Harley-Davidson XR 1200X imageShow more 2011 Harley-Davidson XR 1200X images
2011 Harley-Davidson XR 1200X

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
With a tank and tail section designed to evoke the legendary Harley-Davidson® XR750™ – the king of the gritty American flat-track scene – the XR1200X™ puts its mechanical character on display. Wide flat-track bars and rearset footpegs position an assertive rider for active control. The XR1200X has a blacked-out powertrain and exhaust, revised tank graphics, and black wheels with an orange rim pinstripe.

General information
Model:Harley-Davidson XR 1200X
Year:2011
Category:Custom / cruiser
Rating:70.4 out of 100. Show full rating and compare with other bikes
Price as new (MSRP): Euro 9795. UK £ 9300. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1201.25 ccm (73.30 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters.
Torque:100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 4000 RPM
Compression:10.0:1
Bore x stroke:88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:OHV
Lubrication system:Dry-sump
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate, wet
Driveline:Primary Drive Chain, 57/38 ratio. Final Drive Belt, 68/29 ratio.
Fuel consumption:5.17 litres/100 km (19.3 km/l or 45.50 mpg)
Greenhouse gases:119.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Black, upswept, straight-shot, high-performance exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame, circular sections; cast junctions
Rake (fork angle):29.0°
Trail:132 mm (5.2 inches)
Front suspension:43 mm Inverted Showa fork
Front suspension travel:125 mm (4.9 inches)
Rear suspension:Fully-adjustable
Rear suspension travel:89 mm (3.5 inches)
Front tyre dimensions:120/70-ZR18
Rear tyre dimensions:180/55-ZR17
Front brakes:Double disc. 4-piston.
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single-piston.
Rear brakes diameter:260 mm (10.2 inches)
Wheels:Black, 3-spoke Cast Aluminum
Physical measures and capacities
Dry weight:249.9 kg (551.0 pounds)
Weight incl. oil, gas, etc:259.9 kg (573.0 pounds)
Seat height:742 mm (29.2 inches) If adjustable, lowest setting.
Overall height:1,161 mm (45.7 inches)
Overall length:2,225 mm (87.6 inches)
Overall width:930 mm (36.6 inches)
Ground clearance:150 mm (5.9 inches)
Wheelbase:1,524 mm (60.0 inches)
Fuel capacity:13.25 litres (3.50 gallons)
Oil capacity:2.80 litres (0.18 quarts)
Other specifications
Starter:Electric
Instruments:Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer,
Light:55-watt low beam, 60-watt high beam
Electrical:Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator.
Factory warranty:24 months with unlimited mileage. (US)
Color options:Black Denim, White Hot Denim
