10 Harley-Davidson XL 883R Sportster 883R specificationsHarley-Davidson XL 883R Sportster 883R 2010

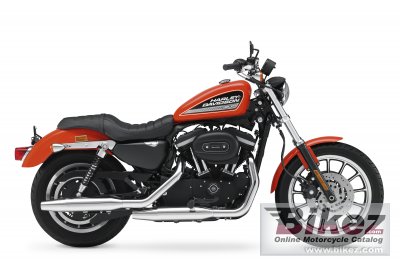

2010 Harley-Davidson XL 883R Sportster 883R photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson XL 883R Sportster 883R image
2010 Harley-Davidson XL 883R Sportster 883R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Harley-Davidson XL 883R Sportster 883R
Year:2010
Category:Custom / cruiser
Rating:61.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:883.00 ccm (53.88 cubic inches)
Engine type:V2, four-stroke
Torque:70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Compression:9.0:1
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle):30.0°
Trail:117 mm (4.6 inches)
Front suspension:Fork 39mm
Rear suspension:Coil-over shocks, preload dual adjustments
Front tyre dimensions:100/90-19
Rear tyre dimensions:150/80-16
Front brakes:Single disc. Dual piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single piston
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:251.0 kg (553.4 pounds)
Seat height:760 mm (29.9 inches) If adjustable, lowest setting.
Overall length:2,245 mm (88.4 inches)
Ground clearance:141 mm (5.6 inches)
Wheelbase:1,520 mm (59.8 inches)
Fuel capacity:12.50 litres (3.30 gallons)
Oil capacity:2.50 litres (0.17 quarts)
Other specifications
Starter:Electric
Color options:Vivid Black, Brilliant Silver Pearl, Mirage Orange Pearl
Comments:Black powder-coated engine with wrinkle-black treatment; Satin black finish on side covers, air cleaner, front forks and visor; Mid-mounted rider footpegs; Standard passenger footpegs; Black, low-rise handlebars; One-piece, two-up Sportster® classic seat; Low-profile front fender
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Harley-Davidson XL 883R Sportster 883R discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Harley-Davidson XL 883R Sportster 883R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Touring capabilities for the 2010 Harley-Davidson XL 883R Sportster 883R:


(67.0 out of 100)

Click here for complete rating. You can also compare bikes.
