09 Harley-Davidson XL 883C Sportster 883 Custom specificationsHarley-Davidson XL 883C Sportster 883 Custom 2009

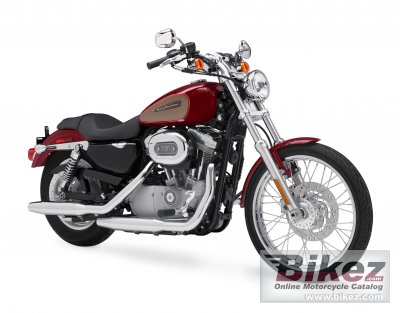

2009 Harley-Davidson XL 883C Sportster 883 Custom photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2009 Harley-Davidson XL 883C Sportster 883 Custom imageShow more 2009 Harley-Davidson XL 883C Sportster 883 Custom images
2009 Harley-Davidson XL 883C Sportster 883 Custom

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Those seeking a laid-back, two-up custom ride in an easy to handle package need look no further than the 883 Custom. With a new suspension and lighter rear wheel, a 17 litre fuel tank, two-up seat, and low-rise handlebars, the 883 Custom rolls down the road with true style, comfort and authentic American V-Twin performance.

General information
Model:Harley-Davidson XL 883C Sportster 883 Custom
Year:2009
Category:Custom / cruiser
Rating:64.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:883.00 ccm (53.88 cubic inches)
Engine type:V2, four-stroke
Torque:70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle):30.0°
Trail:119 mm (4.7 inches)
Front tyre dimensions:MH90-21
Rear tyre dimensions:150/80-16
Front brakes:Single disc. Dual piston calipers
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single piston
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:255.0 kg (562.2 pounds)
Seat height:673 mm (26.5 inches) If adjustable, lowest setting.
Overall length:2,275 mm (89.6 inches)
Ground clearance:112 mm (4.4 inches)
Wheelbase:1,520 mm (59.8 inches)
Fuel capacity:17.00 litres (4.49 gallons)
Other specifications
Starter:Electric
Color options:Vivid Black, Pewter Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold
Comments:Silver powder-coated engine; Chrome, bullet headlamp; Chrome, tall pull-back riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebars; One-piece, two-up Sportster® classic seat;
Modifications compared to previous model:New low profile rear shocks for improved ride quality; New low-profile front fender.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Harley-Davidson XL 883C Sportster 883 Custom discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Harley-Davidson XL 883C Sportster 883 Custom discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Value for money for the 2009 Harley-Davidson XL 883C Sportster 883 Custom:


(72.5 out of 100)

Click here for complete rating. You can also compare bikes.
