10 Harley-Davidson XL 1200X Sportster Forty-Eight specificationsHarley-Davidson XL 1200X Sportster Forty-Eight 2010

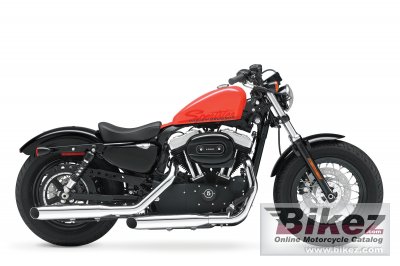

2010 Harley-Davidson XL 1200X Sportster Forty-Eight photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson XL 1200X Sportster Forty-Eight imageShow more 2010 Harley-Davidson XL 1200X Sportster Forty-Eight images
2010 Harley-Davidson XL 1200X Sportster Forty-Eight

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Riding low with a slammed suspension and featuring the classic 2.1-gallon ´peanut´ fuel tank, the Forty-Eight backs up its bulldog appearance with the performance of its blacked out and polished rubber-mounted EvolutionŽ 1200 cc V-Twin engine. The low solo seat, under-mounted mirrors, side mount license plate, clean rear fender and tall and fat front tire emphasize the Forty Eight´s focus on chiseled customization.

General information
Model:Harley-Davidson XL 1200X Sportster Forty-Eight
Year:2010
Category:Custom / cruiser
Rating:65.4 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 10499. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1200.00 ccm (73.22 cubic inches)
Engine type:V2, four-stroke
Torque:107.00 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 4000 RPM
Compression:9.7:1
Bore x stroke:88.9 x 96.8 mm (3.5 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Dry sump
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate, wet
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, shorty dual exhaust with slash-cut mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle):29.9°
Trail:119 mm (4.7 inches)
Front suspension:39mm
Front suspension travel:92 mm (3.6 inches)
Rear suspension:Coil-over, preload dual adjustments
Rear suspension travel:41 mm (1.6 inches)
Front tyre dimensions:MT90-B16
Rear tyre dimensions:150/80-B16
Front brakes:Single disc. Dual piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single piston
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:247.0 kg (544.5 pounds)
Weight incl. oil, gas, etc:257.0 kg (566.6 pounds)
Seat height:680 mm (26.8 inches) If adjustable, lowest setting.
Overall height:1,067 mm (42.0 inches)
Overall length:2,250 mm (88.6 inches)
Overall width:831 mm (32.7 inches)
Ground clearance:99 mm (3.9 inches)
Wheelbase:1,520 mm (59.8 inches)
Fuel capacity:8.00 litres (2.11 gallons)
Oil capacity:2.60 litres (0.17 quarts)
Other specifications
Starter:Electric
Color options:Vivid Black, Brilliant Silver, Mirage Orange
Comments:Peanut fuel tank. Solo seat. Bobbed fenders. A blacked-out engine. Low handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, LED indicator lights.
