| General information |
|---|
| Model: | Harley-Davidson XL 1200R Sportster 1200 Roadster (XR 1200) |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 75.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1202.00 ccm (73.35 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM |
| Compression: | 9.7:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | 9-plate, wet |
| Exhaust system: | Upswept, high-volume 2-1-2 straight shot exhaust system finished in satin chrome |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel tubular frame; circular sections; cast junctions |
| Front suspension: | Sport-tuned Showa® suspension featuring 43mm inverted front forks |
| Rear suspension: | Twin pre-load adjustable shock absorbers |
| Front tyre dimensions: | 120/70-ZR18 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. 4-piston calipers |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. Single pistom |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 251.0 kg (553.4 pounds) |
| Seat height: | 742 mm (29.2 inches) If adjustable, lowest setting. |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Comments: | Evolution engine |
| Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 09 Harley-Davidson XL 1200R Sportster 1200 Roadster (XR 1200) discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |

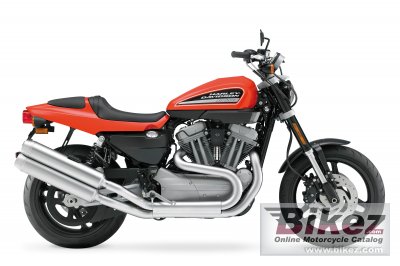

_Image credits - Harley-Davidson.jpg "2009 Harley-Davidson XL 1200R Sportster 1200 Roadster (XR 1200)")
