10 Harley-Davidson XL 1200L Sportster 1200 Low specificationsHarley-Davidson XL 1200L Sportster 1200 Low 2010

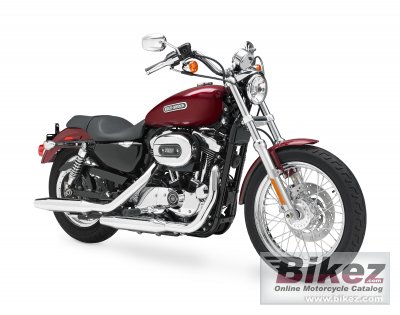

2010 Harley-Davidson XL 1200L Sportster 1200 Low photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson XL 1200L Sportster 1200 Low imageShow more 2010 Harley-Davidson XL 1200L Sportster 1200 Low images
2010 Harley-Davidson XL 1200L Sportster 1200 Low

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Sportster® 1200 Low combines performance, agility and easy-to-handle ergonomics in a long, premium cruiser that is ready for all takers.

General information
Model:Harley-Davidson XL 1200L Sportster 1200 Low
Year:2010
Category:Custom / cruiser
Rating:67.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 9899. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1202.00 ccm (73.35 cubic inches)
Engine type:V2, four-stroke
Torque:98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM
Compression:9.7:1
Bore x stroke:88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves per cylinder:2
Fuel system:Injection. ESPFI
Fuel control:OHV
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Exhaust system:Chrome, staggered exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle):30.0°
Trail:117 mm (4.6 inches)
Front suspension:39mm
Front suspension travel:92 mm (3.6 inches)
Rear suspension:Coil-over shocks, preload dual adjustment
Rear suspension travel:92 mm (3.6 inches)
Front tyre dimensions:100/90-19
Rear tyre dimensions:150/80-B16
Front brakes:Single disc. Dual piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single piston
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:251.0 kg (553.4 pounds)
Seat height:668 mm (26.3 inches) If adjustable, lowest setting.
Overall length:2,263 mm (89.1 inches)
Wheelbase:1,510 mm (59.4 inches)
Fuel capacity:12.50 litres (3.30 gallons)
Other specifications
Starter:Electric
Color options:Vivid Black, Flame Blue Pearl, Red Hot Sunglo, Scarlet Red/Vivid Black
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Harley-Davidson XL 1200L Sportster 1200 Low discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2010 Harley-Davidson XL 1200L Sportster 1200 Low or advertise any other MC for sale. You can list all 2010 Harley-Davidson XL 1200L Sportster 1200 Low available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Harley-Davidson bike
Value for money for the 2010 Harley-Davidson XL 1200L Sportster 1200 Low:


(74.2 out of 100)

Click here for complete rating. You can also compare bikes.
