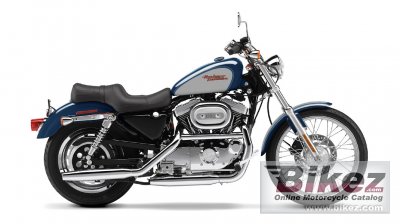

General information Model: Harley-Davidson XL 1200 C Sportster 1200 Custom Year: 2002 Category: Custom / cruiser Rating: 68.2 out of 100. Show full rating and compare with other bikes Engine and transmission Displacement: 1199.00 ccm (73.16 cubic inches) Engine type: V2, four-stroke Torque: 87.00 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 3900 RPM Bore x stroke: 88.8 x 96.8 mm (3.5 x 3.8 inches) Fuel system: Carburettor Cooling system: Air Transmission type, final drive: Belt Chassis, suspension, brakes and wheels Front brakes: Single disc Front brakes diameter: 292 mm (11.5 inches) Rear brakes: Single disc Rear brakes diameter: 292 mm (11.5 inches) Physical measures and capacities Dry weight: 245.0 kg (540.1 pounds) Seat height: 700 mm (27.6 inches) If adjustable, lowest setting. Overall length: 2,245 mm (88.4 inches) Ground clearance: 159 mm (6.3 inches) Wheelbase: 1,510 mm (59.4 inches) Fuel capacity: 12.50 litres (3.30 gallons) Reserve fuel capacity: 1.90 litres (0.50 gallons) Other specifications Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questions Join the 02 Harley-Davidson XL 1200 C Sportster 1200 Custom discussion group.
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes List related bikes for comparison of specs
Rating sample for this Harley-Davidson bike
Offroad capabilities for the 2002 Harley-Davidson XL 1200 C Sportster 1200 Custom: (30.2 out of 100) You can also compare bikes.
