General information |
|
Model name
|

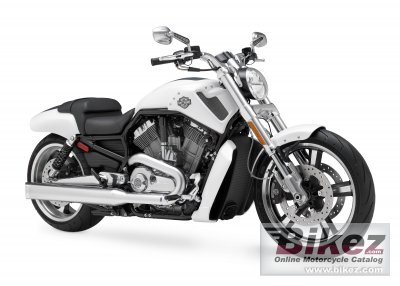

Harley-Davidson VRSCF V-Rod Muscle |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14999. Euro 18445. UK £ 13140. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1250.0 ccm (76.28 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Liquid-cooled, Revolution®, 60° V-Twin |
|
Torque
|
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 6500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
105.0 x 72.0 mm (4.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
Wet-sump, integrated with powertrain crankcase |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
9-plate, wet, A and S (Assist and Slip) |
|
Driveline
|
Primary Drive: Gear, 117/64 ratio. Final Drive: Belt, 72/28 ratio |
|
Exhaust system
|
Satin chrome, dual side exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded. Swingarm: Polished, one-piece cast aluminum. |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
142 mm (5.6 inches) |
|
Front suspension
|
43 mm inverted |
|
Front wheel travel
|
102 mm (4.0 inches) |
|
Rear suspension
|
Preload adjustable |
|
Rear wheel travel
|
74 mm (2.9 inches) |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Double disc. 4-piston. ABS available. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston. ABS available. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, 5-Spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
290.3 kg (640.0 pounds) |
|
Seat height
|
678 mm (26.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2410 mm (94.9 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1700 mm (66.9 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl, Chrome Yellow, White Hot Denim |
|
Starter
|
Electric |
|
Instruments
|
Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer |
|
Electrical
|
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca battery. Charging: Three-phase, 38-amp system |
|
Light
|
Quartz halogen headlamp, 55-watt low beam, 65-watt high beam. Else LED light. |
|
Factory warranty
|
24 months, unlimited mileage. |
