12 Harley-Davidson VRSCDX Night Rod Special specificationsHarley-Davidson VRSCDX Night Rod Special 2012

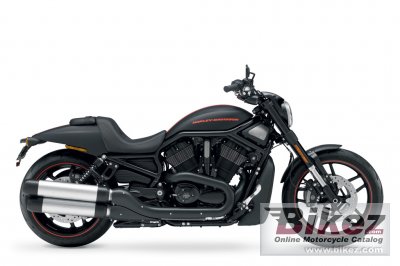

2012 Harley-Davidson VRSCDX Night Rod Special photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson VRSCDX Night Rod Special imageShow more 2012 Harley-Davidson VRSCDX Night Rod Special images
2012 Harley-Davidson VRSCDX Night Rod Special

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Pitch black and sinister as hell, the Night Rod® Special model is aggressively styled from the front end to the back. Engine, wheels, forks, triple clamps, swingarm—they´re all blacked out and thick with uncompromising, drag strip attitude.

General information
Model:Harley-Davidson VRSCDX Night Rod Special
Year:2012
Category:Custom / cruiser
Rating:75.5 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 15299. Euro 16295. UK £ 13499. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1250.08 ccm (76.28 cubic inches)
Engine type:V2, four-stroke
Engine details:Liquid-cooled, Revolution®, 60° V-Twin. Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment.
Torque:115.26 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 7000 RPM
Compression:11.5:1
Bore x stroke:105.0 x 72.0 mm (4.1 x 2.8 inches)
Valves per cylinder:4
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:DOHC
Lubrication system:Pressurized, dry-sump
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet, Assist and Slip
Driveline:Primary Drive Gear, 117/64 ratio Final Drive Belt, 72/28 ratio. High-performance carbon-fiber drive belt.
Fuel consumption:6.36 litres/100 km (15.7 km/l or 36.98 mpg)
Greenhouse gases:147.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Straight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield
Chassis, suspension, brakes and wheels
Frame type:Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded
Rake (fork angle):34.0°
Trail:130 mm (5.1 inches)
Front suspension:43 mm Inverted fork
Front suspension travel:102 mm (4.0 inches)
Rear suspension:Preload adjustable shocks. Polished, one-piece cast aluminum with black powder-coat finish swingarm.
Rear suspension travel:74 mm (2.9 inches)
Front tyre dimensions:120/70-ZR19
Rear tyre dimensions:240/40-R18
Front brakes:Single disc. 4-piston calipers. Optional ABS.
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston caliper. Optional ABS.
Rear brakes diameter:300 mm (11.8 inches)
Wheels:Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Physical measures and capacities
Dry weight:288.9 kg (637.0 pounds)
Weight incl. oil, gas, etc:303.9 kg (670.0 pounds)
Seat height:650 mm (25.6 inches) If adjustable, lowest setting.
Overall length:2,365 mm (93.1 inches)
Ground clearance:122 mm (4.8 inches)
Wheelbase:1,702 mm (67.0 inches)
Fuel capacity:18.93 litres (5.00 gallons)
Oil capacity:4.70 litres (0.31 quarts)
Other specifications
Starter:Electric
Instruments:Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer
Light:55-watt low beam, 60-watt high beam headlight
Electrical:Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca
Factory warranty:2 years, unlimited mileage.
Color options:Vivid Black, Black Denim, Sedona Orange
