| Harley-Davidson's profilation of this bike |
| The Evolution® engine—known in certain crowds as the Blockhead—was first bolted to the frame of a Harley-Davidson® motorcycle back in 1984. Born from legendary Shovelhead and Ironhead engines, the Evolution® engine broke new ground in displacement innovation while maintaining the hunger for power, durability and proven reliability that The Motor Company was built on. |
| General information |
|---|

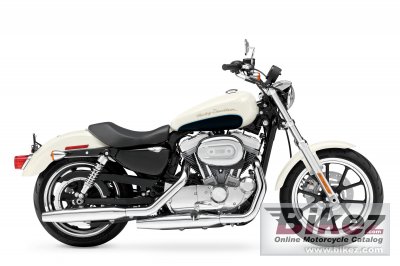

| Model: | Harley-Davidson Sportster SuperLow | | Year: | 2013 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 8099. Euro 8595. UK £ 6695. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 883.32 ccm (53.90 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | Air-cooled, Evolution® | | Torque: | 74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) @ 3500 RPM | | Compression: | 8.9:1 | | Bore x stroke: | 76.2 x 96.8 mm (3.0 x 3.8 inches) | | Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) | | Lubrication system: | Dry-sump | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type,
final drive: | Belt | | Clutch: | Multi-plate with diaphragm spring in oil bath | | Fuel consumption: | 4.61 litres/100 km (21.7 km/l or 51.02 mpg) | | Greenhouse gases: | 107.0 CO2 g/km. (CO2 - Carbon dioxide emission) | | Exhaust system: | Chrome, staggered, shorty exhaust with dual mufflers | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel, tubular frame; circular sections; cast junctions | | Rake (fork angle): | 31.1° | | Trail: | 145 mm (5.7 inches) | | Front suspension: | 39 mm Showa fork | | Rear suspension: | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. | | Front tyre dimensions: | 120/70-ZR18 | | Rear tyre dimensions: | 150/60-ZR17 | | Front brakes: | Single disc. Dual-piston | | Front brakes diameter: | 292 mm (11.5 inches) | | Rear brakes: | Single disc. Single-piston rear | | Rear brakes diameter: | 260 mm (10.2 inches) | | Wheels: | Black, Split 5-Spoke with Machined Rim | | Physical measures and capacities |
|---|
| Dry weight: | 250.8 kg (553.0 pounds) | | Weight incl. oil, gas, etc: | 259.9 kg (573.0 pounds) | | Seat height: | 648 mm (25.5 inches) If adjustable, lowest setting. | | Overall length: | 2,187 mm (86.1 inches) | | Ground clearance: | 97 mm (3.8 inches) | | Wheelbase: | 1,506 mm (59.3 inches) | | Fuel capacity: | 17.03 litres (4.50 gallons) | | Oil capacity: | 2.60 litres (0.17 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights | | Light: | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) | | Color options: | Vivid Black, Candy Orange/Beer Bottle, Birch White/Midnight Pearl, Big Blue Pearl. | | Comments: | North America security system includes immobilizer, outside North America the security system includes immobilizer and siren. | | Further information |
|---|
