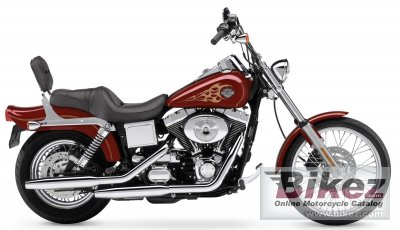

2004 Harley-Davidson FXDWGI Dyna Wide Glide. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FXDWGI Dyna Wide Glide |
|
Year model
|
2004 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
130 mm (5.1 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
295.0 kg (650.4 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2365 mm (93.1 inches) |
|
Ground clearance
|
137 mm (5.4 inches) |
|
Wheelbase
|
1665 mm (65.6 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, luxury teal, real red, impact blue, glacier white pearl, lava red sunglo, two-tone luxury blue and impact blue, two-tone luxury teal and brilliant silver, two-tone sierra red and brilliant silver |
|
Comments
|
Black powder-coated engine with chrome covers; wide, raked-out front fork; ape-hanger handle-bars; bobtail fender; stepped, chopper seat; forward foot controls; chromed sissy bar and backrest; large, tank-mounted speedometer
|
