| General information |
|---|

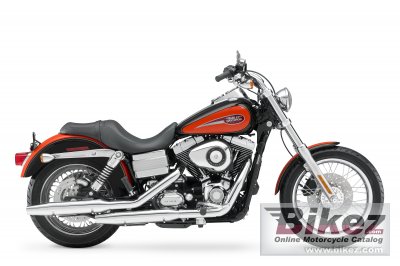

| Model: | Harley-Davidson FXDL Dyna Low Rider |
| Year: | 2008 |
| Category: | Custom / cruiser |
| Rating: | 73.5 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 14995. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1573.25 ccm (96.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.3 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Fuel consumption: | 4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
| Greenhouse gases: | 102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome, staggered shorty exhaust w/ dual mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 29.0° |
| Trail: | 114 mm (4.5 inches) |
| Front tyre dimensions: | 100/90-H19 |
| Rear tyre dimensions: | 160/70-B17 |
| Front brakes: | Single disc. 4-piston calipers |
| Rear brakes: | Single disc. 2-piston torque-free calipers |
| Physical measures and capacities |
|---|
| Dry weight: | 290.8 kg (641.0 pounds) |
| Weight incl. oil, gas, etc: | 304.8 kg (672.0 pounds) |
| Seat height: | 681 mm (26.8 inches) If adjustable, lowest setting. |
| Overall length: | 2,365 mm (93.1 inches) |
| Ground clearance: | 124 mm (4.9 inches) |
| Wheelbase: | 1,641 mm (64.6 inches) |
| Fuel capacity: | 18.16 litres (4.80 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Vivid Black, Pacific Blue Pearl, Black Pearl, White Gold Pearl, Dark Blue Pearl (New), Candy Red Sunglo (New), Two-Tone Suede Blue Pearl/Vivid Black, Two-Tone Vivid Black/Mirage Orange Pearl (New), 105th Anniversary Copper Pearl/Vivid Black, Purple Haze ( |
| Comments: | Raked-out front fork with 49mm fork tubes; low-slung custom seat-25.8´ seat height; easy-reach, pull-back handlebar; tank-mounted speedometer and tachometer; black powder-coated engine with chrome covers; frame mounted highway pegs. |
