10 Harley-Davidson FLSTF Softail Fat Boy specificationsHarley-Davidson FLSTF Softail Fat Boy 2010

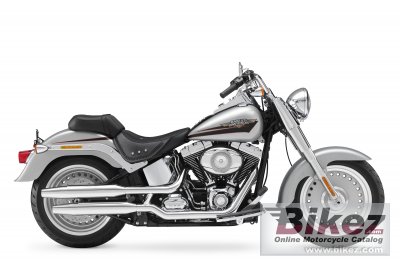

2010 Harley-Davidson FLSTF Softail Fat Boy photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson FLSTF Softail Fat Boy image
2010 Harley-Davidson FLSTF Softail Fat Boy

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The original icon of fat custom styling, the Fat Boy® rolls with stature second to none.

General information
Model:Harley-Davidson FLSTF Softail Fat Boy
Year:2010
Category:Custom / cruiser
Rating:48.6 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 15999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Torque:125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM
Compression:9.2:1
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:OHV
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Exhaust system:Chrome, over/under shotgun exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake (fork angle):31.0°
Trail:147 mm (5.8 inches)
Front suspension:41.3mm telescopic, “beer can” covers
Front suspension travel:97 mm (3.8 inches)
Rear suspension:Hidden, horizontal-mounted, coil-over
Rear suspension travel:91 mm (3.6 inches)
Rear tyre dimensions:200/55-R17
Front brakes:Single disc. 4-piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. 2-piston
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:313.0 kg (690.0 pounds)
Seat height:690 mm (27.2 inches) If adjustable, lowest setting.
Overall length:2,396 mm (94.3 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,635 mm (64.4 inches)
Fuel capacity:19.70 litres (5.20 gallons)
Oil capacity:3.10 litres (0.20 quarts)
Other specifications
Starter:Electric
Color options:Vivid Black, Scarlet Red, Brilliant Silver Pearl, Flame Blue Pearl, Black Ice Pearl
Comments:Black powder-coated engine with chrome treatment covers; Chrome, “horseshoe” oil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, 178mm ball headlamp; Chrome, isolated riser; Full-length rider footboards; Standard passenger footpegs; Chrome, internally wired handlebars; Two-piece, two-up Softail® classic seat with removable pillion seat
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Harley-Davidson FLSTF Softail Fat Boy discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Harley-Davidson FLSTF Softail Fat Boy discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Offroad capabilities for the 2010 Harley-Davidson FLSTF Softail Fat Boy:


(23.4 out of 100)

Click here for complete rating. You can also compare bikes.
