09 Harley-Davidson FLHX Street Glide specificationsHarley-Davidson FLHX Street Glide 2009

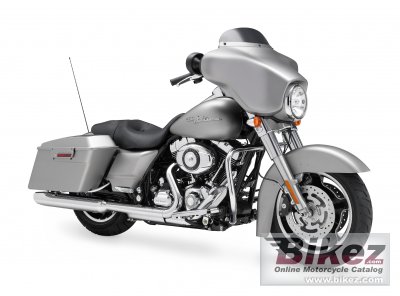

2009 Harley-Davidson FLHX Street Glide photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2009 Harley-Davidson FLHX Street Glide imageShow more 2009 Harley-Davidson FLHX Street Glide images
2009 Harley-Davidson FLHX Street Glide

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
A stylishly stripped-down dresser, the Street Glide features lowered rear suspension, a smoked mini-wind deflector, and a stylish trim at the bottom of the rear fender for a low, lean profile. A traditional “batwing” fairing holds the 40-watt Advanced Audio System by Harman-Kardon®.

General information
Model:Harley-Davidson FLHX Street Glide
Year:2009
Category:Custom / cruiser
Rating:78.8 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Torque:131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression:9.2:1
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Exhaust system:Two-into-One-into-Two chrome exhaust
Chassis, suspension, brakes and wheels
Frame type:New mild steel, single spar rigid backbone with
Rake (fork angle):26.0°
Trail:173 mm (6.8 inches)
Front suspension:41.3mm telescopic, cartridge-style damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Enhanced handling
Rear suspension travel:51 mm (2.0 inches)
Front tyre dimensions:130/80-B17
Rear tyre dimensions:180/65-B16
Front brakes:Double disc. ABS
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. ABS
Rear brakes diameter:300 mm (11.8 inches)
Physical measures and capacities
Dry weight:355.0 kg (782.6 pounds)
Seat height:690 mm (27.2 inches) If adjustable, lowest setting.
Overall length:2,430 mm (95.7 inches)
Ground clearance:119 mm (4.7 inches)
Wheelbase:1,625 mm (64.0 inches)
Fuel capacity:22.70 litres (6.00 gallons)
Other specifications
Starter:Electric
Color options:Vivid Black, Black Pearl, Pewter Pearl, Dark Blue Pearl, Pewter Denim, Red Hot Denim; Red Hot Sunglo
Comments:Black powder-coated engine with chrome treatment covers; “Batwing”, forkmounted fairing with integrated side mirrors; Chrome, low-profile fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Passenger footpegs; New redesigned rider footboard supports for increased lean angle; Stainless steel, classic touring handlebars; One-piece, two-up Street Glide® classic seat; Lightly smoked, Electra Glide® low windshield; Injection-moulded GTX® saddlebags with locks; Harman-Kardon® Advanced Audio System; Cruise control;
Modifications compared to previous model:Retuned front and rear suspension for enhanced handling
