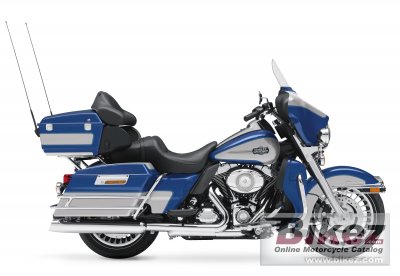

Harley-Davidson's profilation of this bike The Ultra Classic® Electra Glide® provides long-haul touring comfort, convenience, and cargo capacity, with unmistakable Harley style. The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today´s more-powerful engines.
General information Model: Harley-Davidson FLHTCU Ultra Classic Electra Glide Year: 2010 Category: Touring Rating: 62.6 out of 100. Show full rating and compare with other bikes Engine and transmission Displacement: 1584.00 ccm (96.66 cubic inches) Engine type: V2, four-stroke Torque: 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM Compression: 9.2:1 Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches) Valves per cylinder: 2 Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI) Cooling system: Air Gearbox: 6-speed Transmission type, final drive: Belt Exhaust system: 2-1-2 chrome exhaust with dual mufflers and taper end caps Chassis, suspension, brakes and wheels Frame type: Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Rake (fork angle): 26.0° Trail: 170 mm (6.7 inches) Front suspension: 41.3mm telescopic, triple circuit damping Front suspension travel: 117 mm (4.6 inches) Rear suspension: Air-adjustable Rear suspension travel: 76 mm (3.0 inches) Front tyre dimensions: 130/80-B17 Rear tyre dimensions: 180/65-B16 Front brakes: Double disc. 4-piston fixed caliper Front brakes diameter: 300 mm (11.8 inches) Rear brakes: Single disc. 4-piston fixed caliper Rear brakes diameter: 300 mm (11.8 inches) Physical measures and capacities Dry weight: 400.0 kg (881.8 pounds) Seat height: 740 mm (29.1 inches) If adjustable, lowest setting. Overall length: 2,515 mm (99.0 inches) Ground clearance: 150 mm (5.9 inches) Wheelbase: 1,625 mm (64.0 inches) Fuel capacity: 22.70 litres (6.00 gallons) Oil capacity: 3.50 litres (0.23 quarts) Other specifications Starter: Electric Color options: Vivid Black, Flame Blue Pearl, Red Hot Sunglo, Flame Blue Pearl/Brilliant Silver Pearl; Vivid Black/Brilliant Silver Pearl Comments: Black powder-coated engine with chrome treatment covers; “Batwing”,
fork-mounted fairing; Chrome, low-profile fuel tank console; Clear-lens reflectoroptics
headlamp; Adjustable fairing-mounted air deflectors; Full-length height
adjustable rider footboards; Full-length height adjustable passenger footboards;
Stainless steel, classic touring handlebars; One-piece, two-up Electra Glide®
classic comfort stitch seat; Passenger backrest; Clear, Lexan® windshield;
Injection-moulded GTX® saddlebags with locks; Deluxe fibreglass Tour-Pak™;
Harman-Kardon® Advanced Audio System; Intercom; Cruise control;
ABS as standard Further information
