General information |
|
Motorcycle name
|

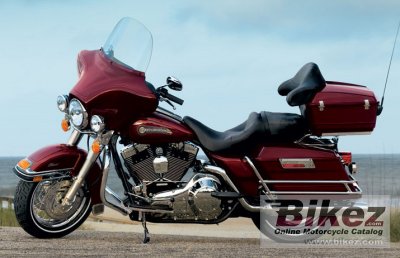

Harley-Davidson FLHTCI Electra Glide Classic |
|
Model year
|
2006 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 17995. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1442.2 ccm (88.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
67.0 HP (48.9 kW)) |
|
Torque
|
116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 3500 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; square-section backbone with twin downtubes. Swing Arm steel, rectangular section. |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
158 mm (6.2 inches) |
|
Front suspension
|
Cartridge style damping |
|
Rear suspension
|
Air-adjustable |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
352.0 kg (776.0 pounds) |
|
Weight incl. oil, gas, etc
|
366.0 kg (807.0 pounds) |
|
Power/weight ratio
|
0.1904 HP/kg |
|
Seat height
|
692 mm (27.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2477 mm (97.5 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, black cherry, rich sunglo blue, brandy wine sunglo, two-tone chopper blue and brilliant silver, two-tone black cherry and black pearl, two-tone fire red pearl and vivid black, two-tone deep cobalt and brilliant silver |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
