12 Harley-Davidson FLHTC Electra Glide Classic specificationsHarley-Davidson FLHTC Electra Glide Classic 2012

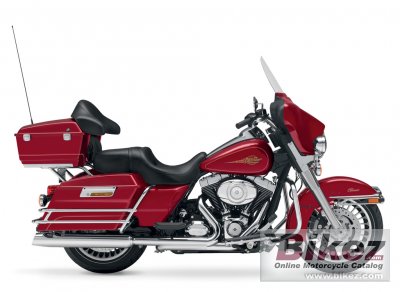

2012 Harley-Davidson FLHTC Electra Glide Classic photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson FLHTC Electra Glide Classic imageShow more 2012 Harley-Davidson FLHTC Electra Glide Classic images
2012 Harley-Davidson FLHTC Electra Glide Classic

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
With features like a spacious Tour-Pak® carrier, a Harmon/Kardon® Advanced Audio System and fine Harley-Davidson styling detail, the Electra Glide® Classic model brings a level of luxury to touring adventures.

General information
Model:Harley-Davidson FLHTC Electra Glide Classic
Year:2012
Category:Touring
Rating:76.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 19499. Euro 23785. UK £ 18399. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1687.97 ccm (103.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled Twin Cam 103™ with Integrated Oil-Cooler. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters;
Torque:135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM
Compression:9.6:1
Bore x stroke:98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Pressurized, dry-sump with oil cooler
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, 2-1-2 dual exhaust with tapered muffler
Chassis, suspension, brakes and wheels
Frame type:Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake (fork angle):26.0°
Trail:170 mm (6.7 inches)
Front suspension:41.3 mm telescopic, triple circuit damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm.
Rear suspension travel:76 mm (3.0 inches)
Front tyre dimensions:130/80-NW17
Rear tyre dimensions:180/65-NW16
Front brakes:Double disc. 4-piston calipers. Optional ABS.
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston caliper. Optional ABS.
Rear brakes diameter:300 mm (11.8 inches)
Wheels:Black, 28-spoke Cast Aluminum
Physical measures and capacities
Dry weight:375.1 kg (827.0 pounds)
Weight incl. oil, gas, etc:391.9 kg (864.0 pounds)
Seat height:693 mm (27.3 inches) If adjustable, lowest setting.
Overall length:2,497 mm (98.3 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,613 mm (63.5 inches)
Fuel capacity:22.71 litres (6.00 gallons)
Oil capacity:3.80 litres (0.25 quarts)
Other specifications
Starter:Electric
Instruments:Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Electrical:Sealed, maintenance-free battery, 12V, 28-amp/hour, 370 cca
Seat:One-piece, two-up Electra Glide classic comfort stitch seat, sculpted for added comfort and easier straddling. Passenger backrest with wrap-around armrests.
Factory warranty:24 months, unlimited mileage.
Color options:Vivid Black, Brilliant Silver Pearl, Ember Red Sunglo, Birch White/Midnight Pearl
Comments:Sidecar option. With windshield. Injection-molded hard saddlebags; 2.26 cu. ft. volume. Injection Molded Tour-Pak® 2.26 cu. ft. volume.
