| General information |
|---|

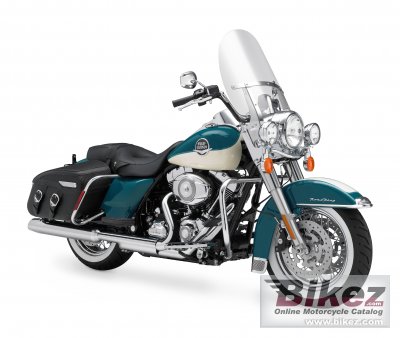

| Model: | Harley-Davidson FLHRC Road King Classic |
| Year: | 2009 |
| Category: | Touring |
| Rating: | 80.3 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 355.0 kg (782.6 pounds) |
| Seat height: | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall length: | 2,400 mm (94.5 inches) |
| Ground clearance: | 145 mm (5.7 inches) |
| Wheelbase: | 1,625 mm (64.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | New mild steel, single spar rigid backbone with |
| Rake (fork angle): | 26.0° |
| Trail: | 173 mm (6.8 inches) |
| Front suspension: | 41.3mm telescopic |
| Front suspension travel: | 117 mm (4.6 inches) |
| Rear suspension: | Handling |
| Rear suspension travel: | 76 mm (3.0 inches) |
| Front tyre dimensions: | 407/130-90 |
| Rear tyre dimensions: | 407/180-65 |
| Front brakes: | Double disc. 4-piston, ABS |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. 4-piston, ABS |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Exhaust system: | Two-into-One-into-Two chrome exhaust |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 22.70 litres (6.00 gallons) |
| Color options: | Vivid Black, Pewter Pearl, Flame Blue Pearl, White Gold Pearl and Pewter Pearl, Deep Turquoise and Antique White; Red Hot Sunglo and Smokey Gold |
| Modifications compared to previous model: | Retuned front and rear suspension for enhanced
handling. |
| Comments: | Black powder-coated engine with chrome treatment covers; Chrome, nostalgic
fuel tank console; Clear-lens reflector-optics headlamp; Full-length height
adjustable rider footboards; Full-length height adjustable passenger footboards;
New redesigned rider footboard supports for increased lean angle; Stainless
steel, “buffalo” handlebars; One-piece, two-up Road King® classic seat; Clear,
large Lexan® quick-release detachable windshield; Leather-wrapped hard bags;
Cruise control; |
