| General information |
|---|

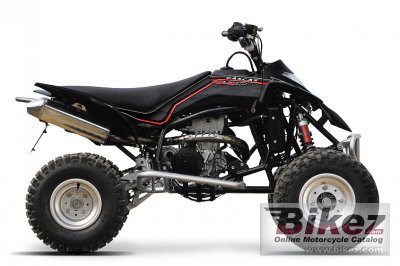

| Model: | GAS GAS HP 515 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 492.00 ccm (30.02 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 100.0 x 62.6 mm (3.9 x 2.5 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI |
| Ignition: | Integrated in the injection system. |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multidisc in oil bath, hydraulically operated. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Multi-tubular with a rounded profile, manufactured in CR-Mo steel. |
| Front suspension: | Adjustable arms with long journey shock absorbers and variable damping. |
| Rear suspension: | Aluminium swing arm. Progressive single shock absorber system. |
| Front tyre dimensions: | AT20x6-10 |
| Rear tyre dimensions: | AT18X10.5-9 |
| Front brakes: | Double disc. Self-ventilated, twin-piston floating calliper |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Single disc. Self-ventilated |
| Physical measures and capacities |
|---|
| Overall width: | 1,222 mm (48.1 inches) |
| Wheelbase: | 1,250 mm (49.2 inches) |
| Fuel capacity: | 12.00 litres (3.17 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Black |
