| General information |
|---|

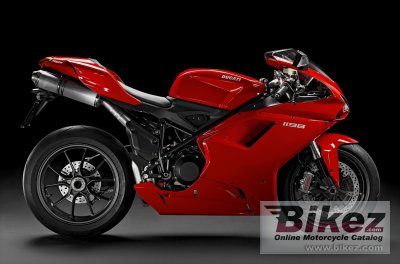

| Model: | Ducati Superbike 1198 |
| Year: | 2011 |
| Category: | Sport |
| Rating: | 74.4 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 16495. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 849.40 ccm (51.83 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 170.00 HP (124.1 kW)) @ 9750 RPM |
| Torque: | 131.40 Nm (13.4 kgf-m or 96.9 ft.lbs) @ 8000 RPM |
| Compression: | 13.2:1 |
| Bore x stroke: | 94.0 x 61.2 mm (3.7 x 2.4 inches) |
| Fuel system: | Injection. Marelli electronic fuel injection, elliptical throttle bodies |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multiplate with hydraulic control |
| Driveline: | Front sprocket 15; Rear sprocket 39 |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 24.5° |
| Front suspension: | Showa 43mmfully adjustable usd forks |
| Front suspension travel: | 127 mm (5.0 inches) |
| Rear suspension: | Showa rear suspension |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. 2-piston calliper |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 168.0 kg (370.4 pounds) |
| Power/weight ratio: | 1.0119 HP/kg |
| Seat height: | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,430 mm (56.3 inches) |
| Fuel capacity: | 15.50 litres (4.10 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Digital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A and B trips, fuel reserve trip, DTC level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Integrated immobilizer system and management of DDA, DTC and DQS |
| Color options: | Red (racing black/graphite gray) |
