13 Ducati 1199 Panigale S Tricolore specificationsDucati 1199 Panigale S Tricolore 2013

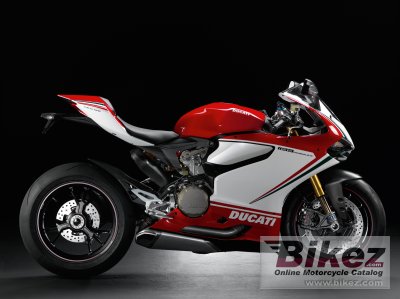

2013 Ducati 1199 Panigale S Tricolore photo
Picture credits - Ducati. Click to submit more pictures.
   Show big 2013 Ducati 1199 Panigale S Tricolore imageShow more 2013 Ducati 1199 Panigale S Tricolore images
2013 Ducati 1199 Panigale S Tricolore

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Ducati's profilation of this bike
In perfect keeping with tradition,the 1199 Panigale S is decked out in a Tricolour livery to celebrate ´Made in Borgo Panigale´ techological excellence and mark the start of a new Ducati Superbike era. Completing the bike set-up are the Ducati performance exhaust, ABs and a device that has already gainedcult status: the all new telemetry, housed in the latest-generation DDA+, which also utilises GPS signals.

General information
Model:Ducati 1199 Panigale S Tricolore
Year:2013
Category:Sport
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:1198.00 ccm (73.10 cubic inches)
Engine type:V2, four-stroke
Power:195.00 HP (142.3 kW)) @ 10750 RPM
Torque:133.02 Nm (13.6 kgf-m or 98.1 ft.lbs) @ 9000 RPM
Compression:12.5:1
Bore x stroke:112.0 x 60.8 mm (4.4 x 2.4 inches)
Valves per cylinder:4
Fuel system:Injection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Fuel control:Desmodromic valve control
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Slipper and self-servo wet multiplate clutch with hydraulic control
Driveline:Chain 525; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.77.
Exhaust system:2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Chassis, suspension, brakes and wheels
Frame type:Monocoque Aluminium
Rake (fork angle):24.0°
Trail:100 mm (3.9 inches)
Front suspension:Ohlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment
Rear suspension:Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm.
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:200/55-ZR17
Front brakes:Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front brakes diameter:330 mm (13.0 inches)
Rear brakes:Single disc. Two-piston calipers.
Rear brakes diameter:245 mm (9.6 inches)
Wheels:3 spoke forged light alloy
Physical measures and capacities
Dry weight:166.5 kg (367.1 pounds)
Weight incl. oil, gas, etc:188.0 kg (414.5 pounds)
Power/weight ratio:1.1712 HP/kg
Seat height:825 mm (32.5 inches) If adjustable, lowest setting.
Wheelbase:1,437 mm (56.6 inches)
Fuel capacity:17.00 litres (4.49 gallons)
Other specifications
Starter:Electric
Factory warranty:2 years unlimited mileage
Color options:Red/white/green
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 Ducati 1199 Panigale S Tricolore discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 Ducati 1199 Panigale S Tricolore and compare it to other bikes here.
