| Derbi's profilation of this bike |
| The most obvious change has been made at the front, where the headlight, formerly integrated in the lower part of the fairing shield, has been raised to the handlebar and is located in front of the instrument panel. |
| General information |
|---|

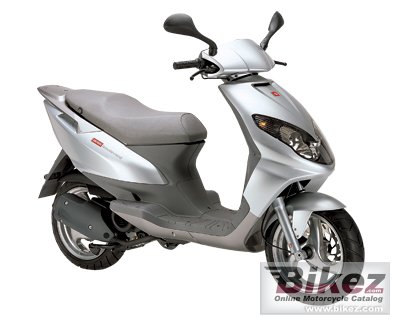

| Model: | Derbi Boulevard 125 4T | | Year: | 2010 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.6:1 | | Bore x stroke: | 57.0 x 48.6 mm (2.2 x 1.9 inches) | | Valves per cylinder: | 2 | | Fuel system: | Carburettor | | Lubrication system: | Mechanical oil pump | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | Centrifugal | | Exhaust system: | Euro 3 | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | 32 mm hydraulic fork. | | Front suspension travel: | 76 mm (3.0 inches) | | Rear suspension: | Single shock absorber | | Rear suspension travel: | 64 mm (2.5 inches) | | Front tyre dimensions: | 120/70-12 | | Rear tyre dimensions: | 120/70-12 | | Front brakes: | Single disc | | Front brakes diameter: | 220 mm (8.7 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 140 mm (5.5 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 115.0 kg (253.5 pounds) | | Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. | | Overall length: | 1,880 mm (74.0 inches) | | Wheelbase: | 1,340 mm (52.8 inches) | | Fuel capacity: | 8.00 litres (2.11 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Black, white, silver | | Comments: | Made in Spain. | | Further information |
|---|
