| General moped information |
|---|

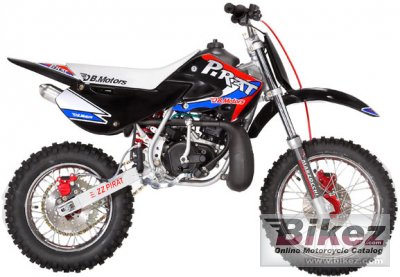

| Model: | DB Motors Pirat LC |
| Year: | 2010 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 12.00 HP (8.8 kW)) @ 14500 RPM |
| Compression: | 15.5:1 |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell’Orto PHBG 19 |
| Fuel control: | OHC |
| Ignition: | Electronic |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic centrifugal |
| Exhaust system: | Racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Magnum 32mm hydraulic telescopic fork |
| Rear suspension: | Special racing Paioli gas-operated shock absorber |
| Front tyre dimensions: | 2.50-12 |
| Rear tyre dimensions: | 2.75-10 |
| Front brakes: | Single disc. Hydraulic master cylinder and calliper |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Single disc. Hydraulic rear foot brake |
| Physical measures and capacities |
|---|
| Dry weight: | 44.5 kg (98.1 pounds) |
| Weight incl. oil, gas, etc: | 48.0 kg (105.8 pounds) |
| Power/weight ratio: | 0.2697 HP/kg |
| Seat height: | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall height: | 930 mm (36.6 inches) |
| Overall length: | 1,400 mm (55.1 inches) |
| Overall width: | 300 mm (11.8 inches) |
| Wheelbase: | 957 mm (37.7 inches) |
| Fuel capacity: | 3.50 litres (0.92 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Black/white/blue/red |
| Comments: | The racing model of the Del Buono mini bikes. Italian made. Two wheel options: 10´-12 or 12´-14´. |
