| General moped information |
|---|

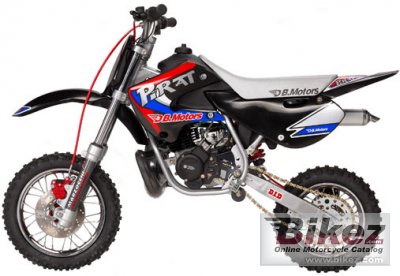

| Model: | DB Motors Pirat Air |
| Year: | 2010 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 11.00 HP (8.0 kW)) @ 13500 RPM |
| Compression: | 14.5:1 |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell’orto PHBG 19 |
| Lubrication system: | EURO unleaded Nc 623-02 R.O.N. 95. Oil and premium grade gasoline mixture at 2% |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic centrifugal |
| Exhaust system: | Racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Single steel beam frame |
| Front suspension: | Magnum |
| Rear suspension: | Special racing shochs |
| Front tyre dimensions: | 2.50-12 |
| Rear tyre dimensions: | 2.75-10 |
| Front brakes: | Single disc. Hydr. master cylinder and calliper |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Single disc. Hydr. master cylinder and caliper |
| Rear brakes diameter: | 160 mm (6.3 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 44.0 kg (97.0 pounds) |
| Power/weight ratio: | 0.2500 HP/kg |
| Seat height: | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall length: | 1,400 mm (55.1 inches) |
| Overall width: | 300 mm (11.8 inches) |
| Wheelbase: | 957 mm (37.7 inches) |
| Fuel capacity: | 4.20 litres (1.11 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Black/blue/red/white |
| Comments: | Two wheel size options: 10´-12´ or 12´-14´. DB Motor is an abbreviation of Del Buono Motor, Italy. |
