11 Confederate C3 X132 Hellcat specificationsConfederate C3 X132 Hellcat 2011

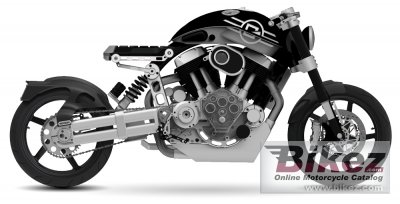

2011 Confederate C3 X132 Hellcat photo
Picture credits - Confederate. Click to submit more pictures.
   Show big 2011 Confederate C3 X132 Hellcat imageShow more 2011 Confederate C3 X132 Hellcat images
2011 Confederate C3 X132 Hellcat

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes

Confederate's profilation of this bike
With the new C3 Hellcat, we set out to build the toughest motorcycle ever made. This mandated absolute chassis and powertrain rigidity along with complete resistance to core fatigue. To do this, we developed a new unitized powertrain casing, which is precision carved from a 400 pound block of 6061 aircraft grade aluminum. The result is superior structural integrity, weighing in at only 40 pounds. Within the new casing lives a big-boned, large diameter chassis/powertrain mounting system, informed by twenty years of Hellcat design.

General information
Model:Confederate C3 X132 Hellcat
Category:Naked bike
Rating:72.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:2163.23 ccm (132.00 cubic inches)
Engine type:V2, four-stroke
Engine details:X 132 Copperhead, L-twin
Torque:196.62 Nm (20.0 kgf-m or 145.0 ft.lbs)
Bore x stroke:111.8 x 111.8 mm (4.4 x 4.4 inches)
Fuel system:Injection
Fuel control:DOHC
Transmission type,
final drive:
Shaft drive (cardan)
Chassis, suspension, brakes and wheels
Frame type:3 inch 120 wall hard steel backbone; 2 inch 120 wall hard steel downtube; Hand TIG wld fabrication
Rake (fork angle):30.0
Trail:4 mm (0.2 inches)
Front suspension:50mm Racetech Lo-Hi speed rebound and compression adjustable
Rear suspension:Coil over Racetech Lo-Hi speed rebound and compression adjustable
Front tyre dimensions:130/60-17
Rear tyre dimensions:240/40-17
Front brakes:Double disc. Bremo 4-piston monoblock calipers. Radial pump technology. Carbon ceramics rotor.
Rear brakes:Single disc
Wheels:Carbon fiber
Physical measures and capacities
Seat height:711 mm (28.0 inches) If adjustable, lowest setting.
Oil capacity:4.90 litres (0.32 quarts)
Other specifications
Light:Integrated high intensity discharge headlamp
Color options:Black/silver
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 11 Confederate C3 X132 Hellcat discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs

Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Confederate. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2011 Confederate C3 X132 Hellcat for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.

Rating sample for this Confederate bike
Offroad capabilities for the 2011 Confederate C3 X132 Hellcat:

(54.0 out of 100)

Click here for complete rating. You can also compare bikes.
