Cobra CX50 JR 20102010 Cobra CX50 JR specifications, pictures, reviews and rating |

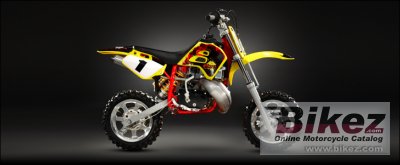

![]() Picture credits - Cobra. Click to submit more pictures.
|
|
Cobra's profilation of this bike |
Integrated grab handle - makes the starting line a little easier for Dad or Mom. |
General moped information | |
---|---|
Model: | Cobra CX50 JR |
Year: | 2010 |
Category: | Minibike, cross |
Rating: | Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission | |
Displacement: | 50.00 ccm (3.05 cubic inches) |
Engine type: | Single cylinder, two-stroke |
Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
Fuel system: | Carburettor |
Fuel control: | Overhead Cams (OHC) |
Lubrication system: | Mixture lubrication |
Cooling system: | Liquid |
Gearbox: | 1-speed |
Transmission type, final drive: | Chain |
Clutch: | Cobra 3Gx 3-Shoe |
Exhaust system: | Tuned pipe and silencer |
Chassis, suspension, brakes and wheels | |
Frame type: | Double Cradle 4130 CrMo steel |
Front suspension: | Marzocchi 32mm |
Front wheel travel: | 160 mm (6.3 inches) |
Rear suspension: | Öhlins Piggyback |
Rear wheel travel: | 170 mm (6.7 inches) |
Front tyre: | 2.50-12 |
Rear tyre: | 2.75-10 |
Front brakes: | Single disc |
Front brakes diameter: | 160 mm (6.3 inches) |
Rear brakes: | Expanding brake (drum brake) |
Physical measures and capacities | |
Dry weight: | 36.7 kg (81.0 pounds) |
Seat height: | 607 mm (23.9 inches) If adjustable, lowest setting. |
Ground clearance: | 216 mm (8.5 inches) |
Wheelbase: | 908 mm (35.7 inches) |
Other specifications | |
Color options: | Yellow/red/black |
Starter: | Kick |
Further information | |
