2010 CH Racing CH 511 Racing Big Wheels specifications, pictures, reviews and rating

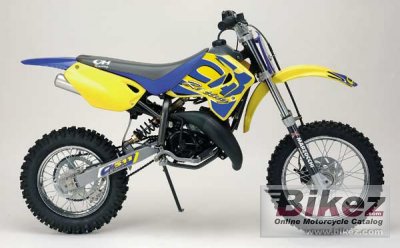

Picture credits - CH Racing. Click to submit more pictures.
|CH Racing's profilation of this bike|
|Same saddle height as 510, this minicross is for an agonistic use. 8HP engine and racing cycling parts. Suggested for expert guys from 8 to 12 years old.|
|General moped information|
|Model:||CH Racing CH 511 Racing Big Wheels|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 2 votes to show the rating.
|Engine and transmission|
|Displacement:||49.70 ccm (3.03 cubic inches)|
|Engine type:||Single cylinder, two-stroke|
|Power:||8.00 HP (5.8 kW))|
|Fuel system:||Carburettor. DELL´ORTO PHBG 14 MS|
|Chassis, suspension, brakes and wheels|
|Front suspension:||Telescopic fork|
|Rear suspension:||Single shock absorber|
|Front tyre dimensions:||2.50-14|
|Rear tyre dimensions:||3.00-12|
|Front brakes:||Single disc|
|Front brakes diameter:||175 mm (6.9 inches)|
|Rear brakes:||Expanding brake (drum brake)|
|Physical measures and capacities|
|Dry weight:||40.0 kg (88.2 pounds)|
|Weight incl. oil, gas, etc:||44.0 kg (97.0 pounds)|
|Power/weight ratio:||0.2000 HP/kg|
|Seat height:||735 mm (28.9 inches) If adjustable, lowest setting.|
|Overall length:||1,500 mm (59.1 inches)|
|Overall width:||630 mm (24.8 inches)|
|Ground clearance:||280 mm (11.0 inches)|
|Wheelbase:||1,100 mm (43.3 inches)|
|Fuel capacity:||2.80 litres (0.74 gallons)|
|Comments:||Intended for children 8 to 12 years old. CH Racing is an Italian brand modifying Husqvarna bikes.|
