13 CCM C-XR230 specificationsCCM C-XR230 2013

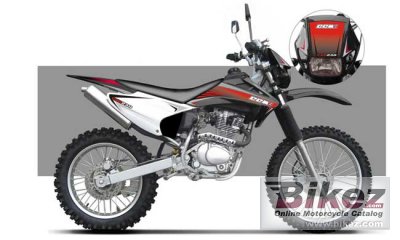

2013 CCM C-XR230 photo
Picture credits - CCM. Click to submit more pictures.
   Show big 2013 CCM C-XR230 image
2013 CCM C-XR230

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



CCM's profilation of this bike
The C-XR230 is excellent value for money, offering an enduro, supermoto and entry level MX machine in one punchy package, which comes with the luxury of an electric start as standard. The CXR230 is now E3 Homologated.

General information
Model:CCM C-XR230
Year:2013
Category:Enduro / offroad
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:230.00 ccm (14.03 cubic inches)
Engine type:Single cylinder, four-stroke
Power:18.00 HP (13.1 kW)) @ 8500 RPM
Compression:9.2:1
Bore x stroke:67.0 x 65.0 mm (2.6 x 2.6 inches)
Fuel system:Carburettor
Fuel control:SOHC
Ignition:C.D.I.
Lubrication system:Wet Sump
Cooling system:Air
Transmission type,
final drive:
Chain
Driveline:520 chain
Emission details:Euro 3
Chassis, suspension, brakes and wheels
Frame type:Tubular welded steel. Cast / welded aluminium swing arm.
Front suspension:Conventional fork, 40mm
Rear suspension:Single shock - adjustable preload
Front tyre dimensions:2.50-21
Rear tyre dimensions:3.00-18
Front brakes:Single disc
Rear brakes:Single disc
Wheels:Spoked. Dunlop/CTS tyres
Physical measures and capacities
Dry weight:118.0 kg (260.1 pounds)
Weight incl. oil, gas, etc:129.0 kg (284.4 pounds)
Power/weight ratio:0.1525 HP/kg
Seat height:940 mm (37.0 inches) If adjustable, lowest setting.
Ground clearance:340 mm (13.4 inches)
Wheelbase:1,350 mm (53.1 inches)
Fuel capacity:8.80 litres (2.32 gallons)
Other specifications
Starter:Electric
Electrical:Battery 12V 7Ah
Color options:White/red/grey
Comments:CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971.
