12 CCM C-XR230 specificationsCCM C-XR230 2012

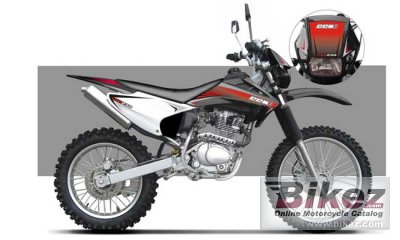

2012 CCM C-XR230 photo
Picture credits - CCM. Click to submit more pictures.
   Show big 2012 CCM C-XR230 image
2012 CCM C-XR230

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



CCM's profilation of this bike
The C-XR230 is excellent value for money, offering an enduro, supermoto and entry level MX machine in one punchy package, which comes with the luxury of an electric start as standard. The CXR230 is now E3 Homologated.

General information
Model:CCM C-XR230
Year:2012
Category:Enduro / offroad
Rating:54.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:230.00 ccm (14.03 cubic inches)
Engine type:Single cylinder, four-stroke
Power:18.00 HP (13.1 kW))
Compression:9.2:1
Bore x stroke:67.0 x 65.0 mm (2.6 x 2.6 inches)
Fuel control:SOHC
Ignition:C.D.I.
Lubrication system:Wet Sump
Cooling system:Air
Transmission type,
final drive:
Chain
Emission details:Euro 3
Chassis, suspension, brakes and wheels
Frame type:Tubular welded steel. Cast / welded aluminium swing arm.
Front suspension:Conventional fork, 40mm
Rear suspension:Single shock - adjustable preload
Front tyre dimensions:2.50-21
Rear tyre dimensions:3.00-18
Front brakes:Single disc
Rear brakes:Single disc
Physical measures and capacities
Dry weight:118.0 kg (260.1 pounds)
Weight incl. oil, gas, etc:129.0 kg (284.4 pounds)
Power/weight ratio:0.1525 HP/kg
Seat height:940 mm (37.0 inches) If adjustable, lowest setting.
Ground clearance:340 mm (13.4 inches)
Wheelbase:1,350 mm (53.1 inches)
Fuel capacity:8.80 litres (2.32 gallons)
Other specifications
Starter:Electric
Electrical:Battery 12V 7Ah
Color options:White/red
Comments:CCM is a British brand.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 CCM C-XR230 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 CCM C-XR230 or advertise any other MC for sale. You can list all available CCM C-XR230 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this CCM bike
Racing track capabilities for the 2012 CCM C-XR230:


(43.2 out of 100)

Click here for complete rating. You can also compare bikes.
