| General information |
|---|

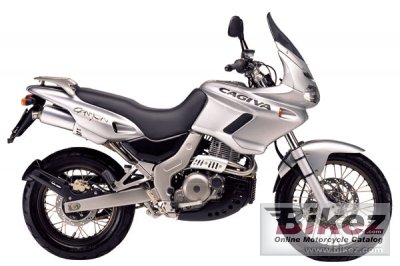

| Model: | Cagiva Canyon 500 |
| Year: | 2001 |
| Category: | Enduro / offroad |
| Rating: | 68.9 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 498.00 ccm (30.39 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 34.00 HP (24.8 kW)) @ 6500 RPM |
| Torque: | 39.00 Nm (4.0 kgf-m or 28.8 ft.lbs) @ 5200 RPM |
| Bore x stroke: | 92.8 x 73.6 mm (3.7 x 2.9 inches) |
| Fuel system: | Carburettor |
| Valves per cylinder: | 4 |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) |
| Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,463 mm (57.6 inches) |
| Chassis and dimensions |
|---|
| Front suspension travel: | 170 mm (6.7 inches) |
| Rear suspension travel: | 170 mm (6.7 inches) |
| Front tyre dimensions: | 100/90-19 |
| Rear tyre dimensions: | 140/80-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 296 mm (11.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Speed and acceleration |
|---|
| Top speed: | 150.0 km/h (93.2 mph) |
| Power/weight ratio: | 0.2061 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 20.00 litres (5.28 gallons) |
