10 Buell XB9SX Lightning specificationsBuell XB9SX Lightning 2010

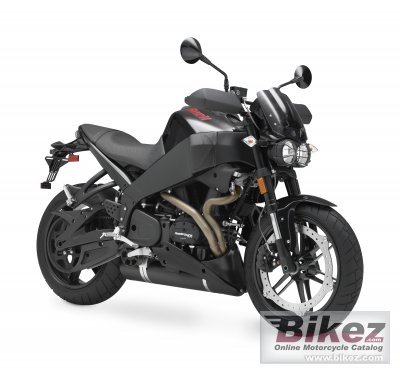

2010 Buell XB9SX Lightning photo
Picture credits - Buell. Click to submit more pictures.
   Show big 2010 Buell XB9SX Lightning imageShow more 2010 Buell XB9SX Lightning images
2010 Buell XB9SX Lightning

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Buell's profilation of this bike
This urban streetfighter comes fully equipped to handle whatever the big city throws your way, with standard wind deflectors, frame pucks, headlamp grille, and the unique X-Guard to protect the air box cover from your tank bag. Light, nimble, and aggressive, it´s powered by a 984 cc Thunderstorm® air/oil/fan-cooled, fuel injected, 45-degree V-twin. Who says a road has to be wide open to be fun¿

General information
Model:Buell XB9SX Lightning
Year:2010
Category:Naked bike
Rating:59.5 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 8999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:983.28 ccm (60.00 cubic inches)
Engine type:V2, four-stroke
Power:92.00 HP (67.2 kW)) @ 7500 RPM
Torque:94.92 Nm (9.7 kgf-m or 70.0 ft.lbs) @ 5500 RPM
Compression:10.0:1
Bore x stroke:88.9 x 79.4 mm (3.5 x 3.1 inches)
Valves per cylinder:2
Fuel system:Injection. 45 mm down draft DDFI 3 injection
Fuel control:OHV
Cooling system:Oil & air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Wet, multi-plate, compensated
Exhaust system:Tuned, tri-pass resonance chamber with mass-centralised mounting
Chassis, suspension, brakes and wheels
Frame type:Black aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake (fork angle):21.0°
Trail:84 mm (3.3 inches)
Front suspension:43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front suspension travel:120 mm (4.7 inches)
Rear suspension:Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
Rear suspension travel:129 mm (5.1 inches)
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:180/55-ZR17
Front brakes:Single disc. ZTL™ brake, 6-piston, fixed caliper; 375 mm, single-sided, inside-out, stainless steel, floating rotor
Front brakes diameter:375 mm (14.8 inches)
Rear brakes:Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:177.0 kg (390.2 pounds)
Power/weight ratio:0.5198 HP/kg
Seat height:765 mm (30.1 inches) If adjustable, lowest setting.
Overall length:1,935 mm (76.2 inches)
Overall width:754 mm (29.7 inches)
Ground clearance:110 mm (4.4 inches)
Wheelbase:1,321 mm (52.0 inches)
Fuel capacity:14.45 litres (3.82 gallons)
Oil capacity:2.40 litres (0.16 quarts)
Other specifications
Starter:Electric
Color options:Cherry Bomb Red Translucid, Kick Ash Translucid
Modifications compared to previous model:Second oxygen sensor and updated EFI calibration improves fuel economy and drivability.
