10 Buell XB12X Ulysses specificationsBuell XB12X Ulysses 2010

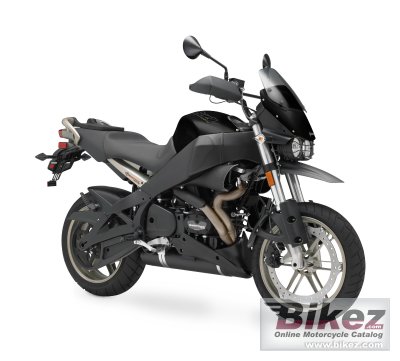

2010 Buell XB12X Ulysses photo
Picture credits - Buell. Click to submit more pictures.
   Show big 2010 Buell XB12X Ulysses imageShow more 2010 Buell XB12X Ulysses images
2010 Buell XB12X Ulysses

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Buell's profilation of this bike
The Buell® Ulysses® XB12X is an adventure sportbike that defies any and all limitations. As light and agile on rough roads as it is on smooth ones, the Ulysses XB12X comes equipped with rugged protective features, a broad, usable powerband and the right amount of suspension travel to swallow up whatever lies ahead. On this Ulysses, the adventure can continue even if the pavement doesn’t.

General information
Model:Buell XB12X Ulysses
Year:2010
Category:Enduro / offroad
Rating:74.5 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 11449. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1202.88 ccm (73.40 cubic inches)
Engine type:V2, four-stroke
Power:103.00 HP (75.2 kW)) @ 6800 RPM
Torque:113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM
Compression:10.0:1
Bore x stroke:88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves per cylinder:2
Fuel system:Injection. 49 mm down draft DDFI 3 fuel injection
Fuel control:OHV
Cooling system:Oil & air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Wet, multi-plate, compensated
Exhaust system:Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting
Chassis, suspension, brakes and wheels
Frame type:Aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake (fork angle):23.5°
Trail:122 mm (4.8 inches)
Front suspension:47 mm Showa inverted forks with rearward offset axle, adjustable compression damping, rebound damping and spring preload
Front suspension travel:165 mm (6.5 inches)
Rear suspension:Showa coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping and spring preload)
Rear suspension travel:162 mm (6.4 inches)
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:180/55-ZR17
Front brakes:Single disc. ZTL™ brake, 6-piston, fixed caliper; single-sided, inside-out, stainless steel, floating rotor
Front brakes diameter:375 mm (14.8 inches)
Rear brakes:Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Seat height:859 mm (33.8 inches) If adjustable, lowest setting.
Overall length:2,159 mm (85.0 inches)
Overall width:892 mm (35.1 inches)
Ground clearance:171 mm (6.8 inches)
Wheelbase:1,374 mm (54.1 inches)
Fuel capacity:16.65 litres (4.40 gallons)
Oil capacity:2.40 litres (0.16 quarts)
Other specifications
Starter:Electric
Color options:Sunfire Yellow, Villain Black
Modifications compared to previous model:Second oxygen sensor and updated EFI calibration improves fuel economy and drivability. Blacked-out frame, swingarm, flyscreen and footpeg supports, and triple clamps.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Buell XB12X Ulysses discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2010 Buell XB12X Ulysses or advertise any other MC for sale. You can list all 2010 Buell XB12X Ulysses available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Buell bike
Engine performance for the 2010 Buell XB12X Ulysses:


(79.0 out of 100)

Click here for complete rating. You can also compare bikes.
