Buell Firebolt XB9R 2004

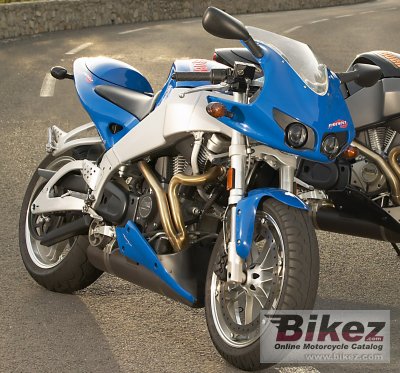

Picture credits - Buell. Click to submit more pictures.

2004 Buell Firebolt XB9R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes

General information
Model:	Buell Firebolt XB9R
Year:	2004
Category:	Naked bike
Rating:	71 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	984.00 ccm (60.04 cubic inches)
Engine type:	Twin, four-stroke
Power:	92.00 HP (67.2 kW)) @ 7500 RPM
Torque:	95.00 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 5500 RPM
Compression:	10.0:1
Bore x stroke:	88.9 x 79.4 mm (3.5 x 3.1 inches)
Valves per cylinder:	2
Fuel system:	Injection
Fuel control:	OHV
Cooling system:	Air
Gearbox:	5-speed
Transmission type, final drive:	Belt
Chassis, suspension, brakes and wheels
Frame type:	Aluminium Frame with Uniplanar powertrain vibration isolation system
Rake (fork angle):	21.0°
Trail:	83 mm (3.3 inches)
Front suspension:	Showa inverted fork with adjustable compression damping, rebound damping and spring preload
Front suspension travel:	120 mm (4.7 inches)
Rear suspension:	Showa shock absorber with adjustable compression damping, rebound damping and spring preload
Rear suspension travel:	127 mm (5.0 inches)
Front tyre dimensions:	120/70-ZR17
Rear tyre dimensions:	180/55-ZR17
Front brakes:	Single disc
Front brakes diameter:	375 mm (14.8 inches)
Rear brakes:	Single disc
Rear brakes diameter:	240 mm (9.4 inches)
Physical measures and capacities
Dry weight:	175.0 kg (385.8 pounds)
Power/weight ratio:	0.5257 HP/kg
Seat height:	775 mm (30.5 inches) If adjustable, lowest setting.
Overall height:	1,092 mm (43.0 inches)
Overall length:	1,924 mm (75.7 inches)
Overall width:	768 mm (30.2 inches)
Ground clearance:	127 mm (5.0 inches)
Wheelbase:	1,320 mm (52.0 inches)
Fuel capacity:	14.00 litres (3.70 gallons)
Other specifications
Color options:	Battle Blue, Arctic White/Blue, Arctic White/Orange. Wheels and frame: Stardust Silver
Further information
Parts and accessories	Check out parts and accessories from our other partners.
Ask questions	Join the 04 Buell Firebolt XB9R discussion group.
Insurance, loans, tests	Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs

Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 Buell Firebolt XB9R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.

Rating sample for this Buell bike
Reliability for the 2004 Buell Firebolt XB9R: (77.1 out of 100) Click here for complete rating. You can also compare bikes.
