| General information |
|---|

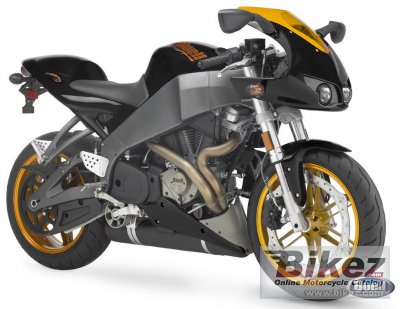

| Model: | Buell Firebolt XB12R |
| Year: | 2006 |
| Category: | Sport |
| Rating: | 71.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 73.40 ccm (4.48 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 103.00 HP (75.2 kW)) @ 6800 RPM |
| Torque: | 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Starter: | Electric |
| Lubrication system: | Dry sump |
| Cooling system: | Oil & air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Clutch: | Wet, multiplate, compensated, reduced lever effort |
| Physical measures |
|---|
| Dry weight: | 179.2 kg (395.0 pounds) |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 1,935 mm (76.2 inches) |
| Overall width: | 716 mm (28.2 inches) |
| Ground clearance: | 110 mm (4.4 inches) |
| Wheelbase: | 1,318 mm (51.9 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Aluminium |
| Rake (fork angle): | 21.0° |
| Trail: | 84 mm (3.3 inches) |
| Front suspension: | Showaź inverted fork with adjustable compression damping, rebound damping and spring preload |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Showaź Fully adjustable, coil-over monoshock with remote, underseat reservoir |
| Rear suspension travel: | 129 mm (5.1 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.5749 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 14.45 litres (3.82 gallons) |
| Color options: | Midnight Black/Racing Red/
Thrust Blue |
