| General information |
|---|

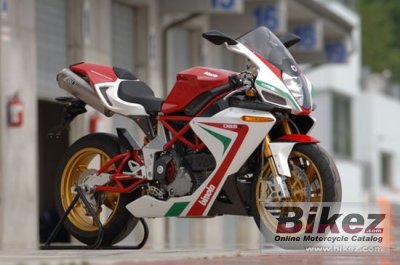

| Model: | Bimota DB5R |
| Year: | 2010 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1078.00 ccm (65.78 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 95.00 HP (69.3 kW)) @ 7000 RPM |
| Torque: | 102.97 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Max RPM: | 9000 |
| Compression: | 10.1:1 |
| Bore x stroke: | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Electronic injection-45mm throttle body |
| Fuel control: | Desmodromic valve control |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Slipper clutch |
| Exhaust system: | 2 in 1 in 2, inox |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | CrMo steel trellis, carbon fibre. |
| Rake (fork angle): | 24.0° |
| Trail: | 100 mm (3.9 inches) |
| Front suspension: | 43mm UD Öhlins TIN Coated Fork, fully adjustable (Pre-load, Compression, Rebound) |
| Front wheel travel: | 120 mm (4.7 inches) |
| Rear suspension: | Öhlins Monoshock, fully adjustable (Pre-load - External Hydraulic Device, Compression, Rebound) |
| Rear wheel travel: | 120 mm (4.7 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 180/55-17 |
| Front brakes: | Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. 2-pistons, 2-pads with Brembo caliper |
| Rear brakes diameter: | 230 mm (9.1 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 170.0 kg (374.8 pounds) |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall length: | 2,180 mm (85.8 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,425 mm (56.1 inches) |
| Other specifications |
|---|
| Color options: | Red/white/green |
| Starter: | Electric |
| Comments: | Ducati 1000DS engine. |
