| General moped information |
|---|

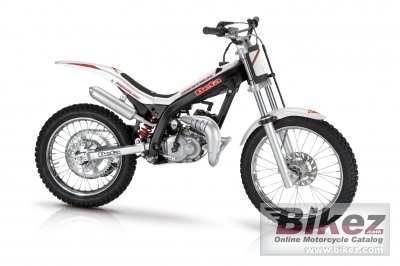

| Model: | Beta Minitrial |
| Year: | 2010 |
| Category: | Trial |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 13.9:1 |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto SHA 14 - 12L |
| Ignition: | Electronic Selettra |
| Lubrication system: | Mix with fuel 1,5% with synthetic oil |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic centrifugal wet clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tubing |
| Front suspension: | Mechanical fork with ø30 mm shaft |
| Front tyre dimensions: | 2.5-16 |
| Rear tyre dimensions: | 2.5-14 |
| Front brakes: | Expanding brake (drum brake). Mechanical drive drum |
| Front brakes diameter: | 66 mm (2.6 inches) |
| Rear brakes: | Expanding brake (drum brake). Mechanical drive drum |
| Rear brakes diameter: | 90 mm (3.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 42.5 kg (93.7 pounds) |
| Seat height: | 570 mm (22.4 inches) If adjustable, lowest setting. |
| Overall height: | 940 mm (37.0 inches) |
| Overall length: | 1,530 mm (60.2 inches) |
| Ground clearance: | 255 mm (10.0 inches) |
| Wheelbase: | 1,020 mm (40.2 inches) |
| Fuel capacity: | 2.00 litres (0.53 gallons) |
| Reserve fuel capacity: | 0.30 litres (0.08 gallons) |
| Other specifications |
|---|
| Color options: | Black/white |
