| Beta's profilation of this bike |

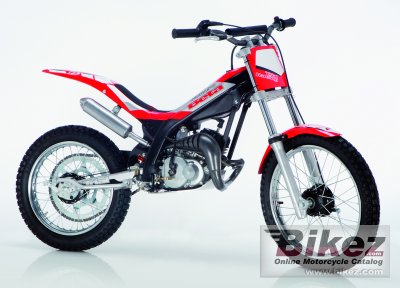

| Little riders craving to climb over the first obstacle with dad and his Rev3, can get on the new Minitrial, a light vehicle moved by a brisk single-cylinder engine, 2 strokes and air-cooled. |
| General moped information |
|---|
| Model: | Beta Minitrial | | Year: | 2007 | | Category: | Minibike, cross | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Compression: | 13.9:1 | | Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) | | Fuel system: | Carburettor. Dell´Orto SHA 14 - 12L | | Ignition: | Electronic Selettra | | Lubrication system: | mix with fuel 1,5% (with synthetic oil) | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Clutch: | Automatic centrifugal wet clutch | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tubing | | Front suspension: | Mechanical fork with ø30 mm shaft | | Front suspension travel: | 30 mm (1.2 inches) | | Front tyre dimensions: | 2.5-16 | | Rear tyre dimensions: | 2.5-14 | | Front brakes: | Expanding brake (drum brake). Mechanical drive drum ø66 mm | | Front brakes diameter: | 66 mm (2.6 inches) | | Rear brakes: | Expanding brake (drum brake). Mechanical drive drum ø90 mm | | Rear brakes diameter: | 90 mm (3.5 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 42.5 kg (93.7 pounds) | | Seat height: | 570 mm (22.4 inches) If adjustable, lowest setting. | | Overall height: | 940 mm (37.0 inches) | | Overall length: | 1,530 mm (60.2 inches) | | Overall width: | 650 mm (25.6 inches) | | Ground clearance: | 255 mm (10.0 inches) | | Wheelbase: | 1,020 mm (40.2 inches) | | Fuel capacity: | 2.00 litres (0.53 gallons) | | Reserve fuel capacity: | 0.30 litres (0.08 gallons) | | Other specifications |
|---|
| Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 07 Beta Minitrial discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
