| General moped information |
|---|

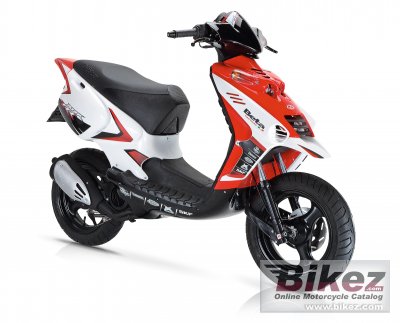

| Model: | Beta Ark AC RR |
| Year: | 2010 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 12.0:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Dell´Orto PHVA 12 |
| Fuel control: | OHC |
| Lubrication system: | With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Dry automatic centrifugal type |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel |
| Front suspension: | Hydraulic fork with ø32 mm shaft |
| Rear suspension: | Monoshock with adjustable spring preload |
| Front tyre dimensions: | 130/60-13 |
| Rear tyre dimensions: | 130/60-13 |
| Front brakes: | Single disc |
| Front brakes diameter: | 190 mm (7.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 88.0 kg (194.0 pounds) |
| Overall height: | 1,150 mm (45.3 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Ground clearance: | 215 mm (8.5 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Red/white |
| Comments: | A liquid cooled version called Ark LC RR is available. |
