| Arctic Cat's profilation of this bike |
| Everything about this ATV screams “trailvoyager“. The the reins with the 366 SE and those patches will smooth out before you thank to the fully independent suspension. |
| General information |
|---|

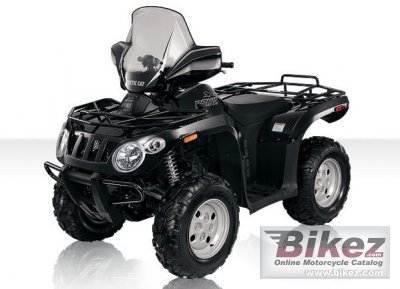

| Model: | Arctic Cat 366 SE | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 6899. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 366.00 ccm (22.33 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Bore x stroke: | 89.0 x 71.2 mm (3.5 x 2.8 inches) | | Valves per cylinder: | 4 | | Fuel control: | SOHC | | Cooling system: | Oil & air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm | | Front suspension travel: | 178 mm (7.0 inches) | | Rear suspension: | Double A-Arm | | Rear suspension travel: | 178 mm (7.0 inches) | | Front tyre dimensions: | 24/8-12 | | Rear tyre dimensions: | 24/10-12 | | Front brakes: | Single disc. Hydraulic | | Rear brakes: | Single disc. Hydraulic | | Physical measures and capacities |
|---|
| Dry weight: | 258.5 kg (569.9 pounds) | | Overall height: | 1,184 mm (46.6 inches) | | Overall length: | 2,057 mm (81.0 inches) | | Overall width: | 1,180 mm (46.5 inches) | | Ground clearance: | 254 mm (10.0 inches) | | Wheelbase: | 1,270 mm (50.0 inches) | | Fuel capacity: | 16.30 litres (4.31 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Metallic black | | Comments: | 2/4WD with reverse. EBS. High/low range. | | Further information |
|---|
