| General information |
|---|

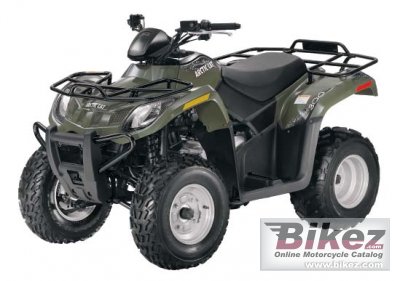

| Model: | Arctic Cat 300 | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 3999. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 270.00 ccm (16.48 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Bore x stroke: | 72.7 x 65.2 mm (2.9 x 2.6 inches) | | Valves per cylinder: | 2 | | Fuel control: | SOHC | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Driveline: | Automatic CVT with Forward, Neutral and Reverse. 2WD | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm. Adjustable Preload Shocks | | Front suspension travel: | 126 mm (5.0 inches) | | Rear suspension: | Swing arm. | | Rear suspension travel: | 126 mm (5.0 inches) | | Front tyre dimensions: | 22/7-10 | | Rear tyre dimensions: | 22/10-10 | | Front brakes: | Single disc. Hydraulic | | Rear brakes: | Single disc. Hydraulic | | Physical measures and capacities |
|---|
| Dry weight: | 216.4 kg (477.1 pounds) | | Overall height: | 1,118 mm (44.0 inches) | | Overall length: | 1,869 mm (73.6 inches) | | Overall width: | 105 mm (4.1 inches) | | Ground clearance: | 259 mm (10.2 inches) | | Wheelbase: | 1,179 mm (46.4 inches) | | Fuel capacity: | 12.50 litres (3.30 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Light: | Two headlights | | Electrical: | Alternator Capacity: 12.5 amps. | | Carrying capacity: | Front Rack Capacity 50 lbs / 22.7 kg: Rear Rack Capacity 100 lbs / 45.4 kg: Towing Capacity 500 lbs / 226.8 kg. | | Color options: | Green | | Further information |
|---|
