13 Aprilia Tuono V4 R specificationsAprilia Tuono V4 R 2013

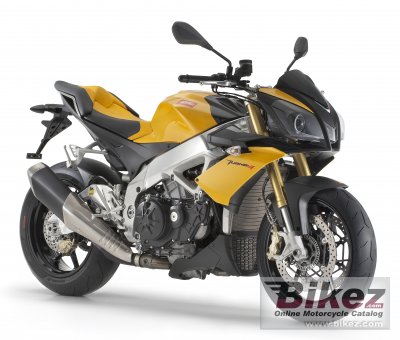

2013 Aprilia Tuono V4 R photo
Picture credits - Aprilia. Click to submit more pictures.
   Show big 2013 Aprilia Tuono V4 R imageShow more 2013 Aprilia Tuono V4 R images
2013 Aprilia Tuono V4 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Aprilia's profilation of this bike
After creating the best superbike of the new millennium, Aprilia revolutionises the supersports naked segment with its astonishing new Tuono V4 R. A bike that goes beyond the wildest dreams of even the most hardcore enthusiasts - the rider who, given the chance, would use a race bike just to go for a coffee.

General information
Model:Aprilia Tuono V4 R
Year:2013
Category:Naked bike
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:999.60 ccm (61.00 cubic inches)
Engine type:V4, four-stroke
Engine details:Longitudinal 65 V-4
Power:164.95 HP (120.4 kW)) @ 11500 RPM
Torque:110.00 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 9500 RPM
Compression:13.0:1
Bore x stroke:78.0 x 52.2 mm (3.1 x 2.1 inches)
Valves per cylinder:4
Fuel system:Injection. Four Weber-Marelli 48mm throttle bodies with four injectors. Airbox with front dynamic air intakes.
Fuel control:DOHC
Ignition:Ride-by-wire engine management with three selectable maps Track, Sport, Road
Lubrication system:Wet sump lubrication system with oil radiator and two oil pumps
Cooling system:Oil & air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Slipper clutch, Aprilia Quick Shift system
Driveline:Straight cut gears and integrated flexible coupling, drive ratio: 73/44 primay drive. Chain 42/16 final drive.
Exhaust system:4 into 2 into 1 layout, single oxygen sensor
Chassis, suspension, brakes and wheels
Frame type:Aluminium dual beam chassis with cast and pressed sheet elements.
Rake (fork angle):25.0
Trail:108 mm (4.2 inches)
Front suspension:Sachs, 43mm titanium nitride (TiN) USD fork, fully adjustable for compression and rebound damping, and preload
Front suspension travel:120 mm (4.7 inches)
Rear suspension:Double braced aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage.
Rear suspension travel:130 mm (5.1 inches)
Front tyre dimensions:120/70-17.
Rear tyre dimensions:190/55-17
Front brakes:Double disc. Floating stainless steel discs with lightweight stainless steel rotor with 6 studs
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Floating calliper with two and #61638;32 mm isolated pistons
Rear brakes diameter:220 mm (8.7 inches)
Wheels:Cast aluminium wheels with 3 split spoke
Physical measures and capacities
Dry weight:183.0 kg (403.4 pounds)
Power/weight ratio:0.9014 HP/kg
Seat height:840 mm (33.1 inches) If adjustable, lowest setting.
Overall height:1,100 mm (43.3 inches)
Overall length:2,060 mm (81.1 inches)
Overall width:800 mm (31.5 inches)
Ground clearance:120 mm (4.7 inches)
Wheelbase:1,440 mm (56.7 inches)
Fuel capacity:17.00 litres (4.49 gallons)
Reserve fuel capacity:4.00 litres (1.06 gallons)
Other specifications
Starter:Electric
Electrical:Flywheel mounted 420W alternator with rare earth magnets
Color options:Black, White, Yellow
