Aprilia's profilation of this bike |
At the front there is a mighty fork with 40 mm stanchions giving a wheel travel of 195 mm, more than enough to absorb even the hardest knocks. At the back, the high strength steel swingarm is damped by an advanced hydraulic monoshock giving a generous 180 mm of rear wheel travel to ensure that the RX/SX 50 can tackle even the toughest terrains. |
General moped information |
---|

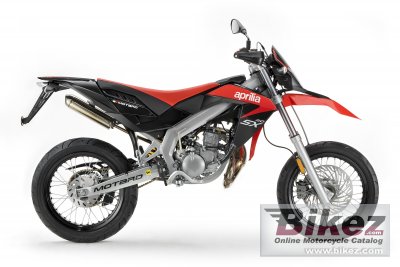

Model: | Aprilia SX 50 |
Year: | 2012 |
Category: | Super motard |
Rating: | 63.7 out of 100. Show full rating and compare with other bikes |
Engine and transmission |
---|
Displacement: | 49.90 ccm (3.04 cubic inches) |
Engine type: | Single cylinder, two-stroke |
Compression: | 11.5:1 |
Bore x stroke: | 39.9 x 40.0 mm (1.6 x 1.6 inches) |
Fuel system: | Carburettor. Dell Ortho PVHA 17.5 |
Ignition: | Electronic C.D.I |
Lubrication system: | Automatic mixer |
Cooling system: | Liquid |
Gearbox: | 6-speed |
Transmission type, final drive: | Chain |
Clutch: | Multi-plate |
Driveline: | Primary drive: Gears. Ratio: 21/78. Final drive: Chain. Ratio: 11/53 |
Emission details: | Euro 2 |
Exhaust system: | Catalytic converter |
Chassis, suspension, brakes and wheels |
---|
Frame type: | Steel beam |
Front suspension: | 40 mm hydraulic fork with leading axle,. |
Front wheel travel: | 195 mm (7.7 inches) |
Rear suspension: | High strength steel swingarm; Hydraulic monoshock. |
Rear wheel travel: | 180 mm (7.1 inches) |
Front tyre: | 110/80-17 |
Rear tyre: | 130/70-17 |
Front brakes: | Single disc. Stainless steel disc, floating caliper. |
Front brakes diameter: | 300 mm (11.8 inches) |
Rear brakes: | Single disc. Stainless steel disc, caliper with two opposing pistons. |
Rear brakes diameter: | 180 mm (7.1 inches) |
Wheels: | Spoked wheels with aluminium rim. Front: 2.50 X 17” Rear: 3.50 x 17” |
Physical measures and capacities |
---|
Seat height: | 830 mm (32.7 inches) If adjustable, lowest setting. |
Overall length: | 2,045 mm (80.5 inches) |
Overall width: | 825 mm (32.5 inches) |
Wheelbase: | 1,406 mm (55.4 inches) |
Fuel capacity: | 7.00 litres (1.85 gallons) |
Other specifications |
---|
Color options: | Black |
Starter: | Kick |
