Yamaha XVS 125 Drag Star 2001

2001 Yamaha XVS 125 Drag Star specifications, pictures, reviews and rating

Copyright (C) by Bikez.com.. Click to submit more pictures.

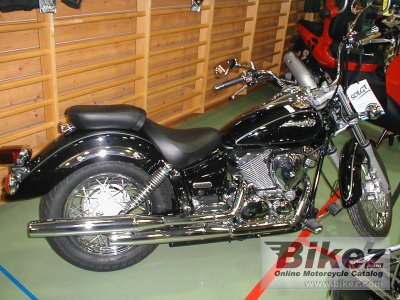

2001 Yamaha XVS 125 Drag Star

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Yamaha XVS 125 Drag Star
Year:	2001
Category:	Custom / cruiser
Rating:	72.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	124.00 ccm (7.57 cubic inches)
Engine type:	V2, four-stroke
Power:	13.00 HP (9.5 kW)) @ 10000 RPM
Torque:	9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8000 RPM
Top speed:	107.0 km/h (66.5 mph)
Bore x stroke:	41.0 x 47.0 mm (1.6 x 1.9 inches)
Valves per cylinder:	2
Fuel system:	Carburettor
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front wheel travel:	140 mm (5.5 inches)
Rear wheel travel:	100 mm (3.9 inches)
Front tyre:	80/100-18
Rear tyre:	130/90-15
Front brakes:	Single disc
Front brakes diameter:	282 mm (11.1 inches)
Rear brakes:	Expanding brake
Rear brakes diameter:	130 mm (5.1 inches)
Physical measures and capacities
Dry weight:	144.0 kg (317.5 pounds)
Power/weight ratio:	0.0903 HP/kg
Seat height:	670 mm (26.4 inches) If adjustable, lowest setting.
Wheelbase:	1,530 mm (60.2 inches)
Fuel capacity:	11.00 litres (2.91 gallons)
Other specifications
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Customizing	Aftermarked parts at CruiserCustomizing.com.
Ask questions	Join the 01 Yamaha XVS 125 Drag Star discussion group or the general Yamaha discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.

General information

Model:

Yamaha XVS 125 Drag Star

Year:

2001

Category:

Custom / cruiser

Rating:

72.1 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

124.00 ccm (7.57 cubic inches)

Engine type:

V2, four-stroke

Power:

13.00 HP (9.5 kW)) @ 10000 RPM

Torque:

9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8000 RPM

Top speed:

107.0 km/h (66.5 mph)

Bore x stroke:

41.0 x 47.0 mm (1.6 x 1.9 inches)

Valves per cylinder:

Fuel system:

Carburettor

Gearbox:

5-speed

Transmission type,
final drive:

Chain

Chassis, suspension, brakes and wheels

Front wheel travel:

140 mm (5.5 inches)

Rear wheel travel:

100 mm (3.9 inches)

Front tyre:

80/100-18

Rear tyre:

130/90-15

Front brakes:

Single disc

Front brakes diameter:

282 mm (11.1 inches)

Rear brakes:

Expanding brake

Rear brakes diameter:

130 mm (5.1 inches)

Physical measures and capacities

Dry weight:

144.0 kg (317.5 pounds)

Power/weight ratio:

0.0903 HP/kg

Seat height:

670 mm (26.4 inches) If adjustable, lowest setting.

Wheelbase:

1,530 mm (60.2 inches)

Fuel capacity:

11.00 litres (2.91 gallons)

Other specifications

Further information

Insurance costs

Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.

Parts finder

Chaparral provides online schematics & OEM parts for the US. Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.

Customizing

Aftermarked parts at CruiserCustomizing.com.

Ask questions

Join the 01 Yamaha XVS 125 Drag Star discussion group or the general Yamaha discussion group.

Loans, tests, etc

Search the web for dealers, loan costs, tests, customizing, etc.

Related bikes

List related bikes for comparison of specs.

Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2001 Yamaha XVS 125 Drag Star discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.

Rating sample for this Yamaha bike

Offroad capabilities for the 2001 Yamaha XVS 125 Drag Star:

Vote scale

(41.6 out of 100)

Click here for complete rating. You can also compare bikes.
