| Yamaha's profilation of this bike |
| Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture. Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life. |
| General information |
|---|

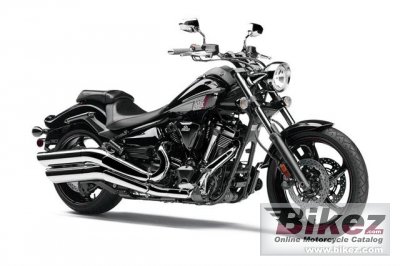

| Model: | Yamaha Star Raider | | Year: | 2013 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 14890. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1851.85 ccm (113.00 cubic inches) | | Engine type: | V2, four-stroke | | Compression: | 9.5:1 | | Bore x stroke: | 100.0 x 118.0 mm (3.9 x 4.6 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Twin-Bore electronic fuel injection; throttle position sensor | | Fuel control: | OHV | | Ignition: | TCI: Transistor Controlled Ignition | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Belt | | Fuel consumption: | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) | | Greenhouse gases: | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle | | Front suspension: | Telescopic fork | | Front suspension travel: | 130 mm (5.1 inches) | | Rear suspension: | Swingarm | | Rear suspension travel: | 89 mm (3.5 inches) | | Front tyre dimensions: | 120/70-M | | Rear tyre dimensions: | 210/40-M18 | | Front brakes: | Double disc. Hydraulic. | | Front brakes diameter: | 298 mm (11.7 inches) | | Rear brakes: | Single disc. Hydraulic. | | Rear brakes diameter: | 310 mm (12.2 inches) | | Wheels: | 5-spoke cast | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 331.1 kg (730.0 pounds) | | Seat height: | 696 mm (27.4 inches) If adjustable, lowest setting. | | Overall height: | 1,166 mm (45.9 inches) | | Overall length: | 2,570 mm (101.2 inches) | | Overall width: | 925 mm (36.4 inches) | | Ground clearance: | 145 mm (5.7 inches) | | Wheelbase: | 1,801 mm (70.9 inches) | | Fuel capacity: | 15.90 litres (4.20 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Factory warranty: | 1 Year (Limited Factory Warranty) | | Color options: | Raven | | Further information |
|---|
