12 Yamaha Star Raider specificationsYamaha Star Raider 2012

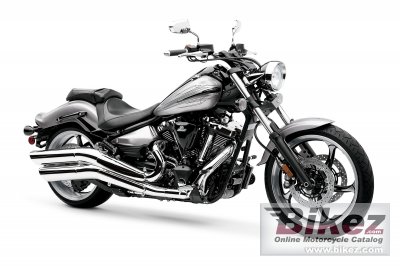

2012 Yamaha Star Raider photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2012 Yamaha Star Raider imageShow more 2012 Yamaha Star Raider images
2012 Yamaha Star Raider

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture. Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.

General information
Model:Yamaha Star Raider
Year:2012
Category:Custom / cruiser
Rating:64.7 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 14590. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1851.85 ccm (113.00 cubic inches)
Engine type:V2, four-stroke
Engine details:48 V-twin. Ceramic-composite plated cylinders.
Compression:9.5:1
Bore x stroke:100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves per cylinder:2
Fuel system:Injection. Twin-Bore electronic fuel injection; throttle position sensor
Fuel control:OHV
Ignition:TCI: Transistor Controlled Ignition
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Wet, multidisc
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type:Double cradle
Rake (fork angle):29.0
Trail:102 mm (4.0 inches)
Front suspension:Telescopic fork
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Swingarm
Rear suspension travel:89 mm (3.5 inches)
Front tyre dimensions:120/70-21
Rear tyre dimensions:210/40-18
Front brakes:Double disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:310 mm (12.2 inches)
Wheels:5-spoke cast
Physical measures and capacities
Weight incl. oil, gas, etc:331.1 kg (729.9 pounds)
Seat height:696 mm (27.4 inches) If adjustable, lowest setting.
Overall height:1,166 mm (45.9 inches)
Overall length:2,570 mm (101.2 inches)
Overall width:925 mm (36.4 inches)
Ground clearance:147 mm (5.8 inches)
Wheelbase:1,801 mm (70.9 inches)
Fuel capacity:15.90 litres (4.20 gallons)
Other specifications
Starter:Electric
Instruments:Tank-mounted instrumentation. Analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters and odometer.
Seat:Sculpted seat
Factory warranty:1 Year (Limited Factory Warranty)
Color options:Nebulous Purple, Raven Black
