12 Yamaha Raptor 350 specificationsYamaha Raptor 350 2012

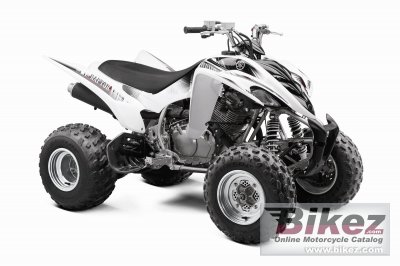

2012 Yamaha Raptor 350 photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2012 Yamaha Raptor 350 imageShow more 2012 Yamaha Raptor 350 images
2012 Yamaha Raptor 350

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Big Raptor style and Raptor-inspired seat mean maximum rider comfort and movement with excellent sport-riding ergonomics.

General information
Model:Yamaha Raptor 350
Year:2012
Category:ATV
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Price as new (MSRP):US$ 5499. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:348.00 ccm (21.23 cubic inches)
Engine type:Single cylinder, four-stroke
Engine details:Titanium valves
Compression:9.2:1
Bore x stroke:83.0 x 64.5 mm (3.3 x 2.5 inches)
Valves per cylinder:2
Fuel system:Carburettor. Mikuni 36mm BSR
Fuel control:SOHC
Ignition:DC - CDI
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multiplate
Driveline:2WD; sealed O-ring chain
Chassis, suspension, brakes and wheels
Front suspension:Independent double wishbone
Front suspension travel:201 mm (7.9 inches)
Rear suspension:Swingarm
Rear suspension travel:211 mm (8.3 inches)
Front tyre dimensions:21/7-10
Rear tyre dimensions:20/10-9
Front brakes:Double disc. Hydraulic
Rear brakes:Single disc. Hydraulic
Physical measures and capacities
Weight incl. oil, gas, etc:179.6 kg (396.0 pounds)
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Overall height:1,080 mm (42.5 inches)
Overall length:1,770 mm (69.7 inches)
Overall width:1,095 mm (43.1 inches)
Ground clearance:114 mm (4.5 inches)
Wheelbase:1,209 mm (47.6 inches)
Fuel capacity:9.08 litres (2.40 gallons)
Other specifications
Starter:Electric
Light:Dual 30W Krypton multireflector headlights and 21/5W brakelight
Factory warranty:6 Months
Color options:White w/Custom Graphic
