11 Yamaha Raptor 250 specificationsYamaha Raptor 250 2011

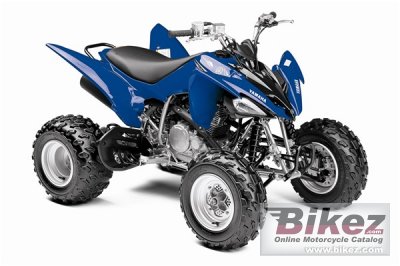

2011 Yamaha Raptor 250 photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2011 Yamaha Raptor 250 imageShow more 2011 Yamaha Raptor 250 images
2011 Yamaha Raptor 250

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Aggressive Raptor style and stance gives maximum performance and excellent, all-day sport-riding ergonomics. Class-exclusive five-speed manual transmission has a gear for almost any terrain.

General information
Model:Yamaha Raptor 250
Year:2011
Category:ATV
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Price as new (MSRP):US$ 4599. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:249.00 ccm (15.19 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:9.5:1
Bore x stroke:74.0 x 58.0 mm (2.9 x 2.3 inches)
Valves per cylinder:2
Fuel system:Carburettor. Mikuni 29mm BSR
Fuel control:SOHC
Ignition:DC-CDI
Cooling system:Oil & air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Driveline:2WD; sealed O-ring chain, eccentric adjustment
Chassis, suspension, brakes and wheels
Front suspension:Independent double wishbone
Front suspension travel:127 mm (5.0 inches)
Rear suspension:Swingarm, preload-adjustable, 7.9-in travel
Front tyre dimensions:20/7-10
Rear tyre dimensions:19/10-9
Front brakes:Double disc
Rear brakes:Single disc
Physical measures and capacities
Weight incl. oil, gas, etc:149.7 kg (330.0 pounds)
Seat height:729 mm (28.7 inches) If adjustable, lowest setting.
Overall height:1,039 mm (40.9 inches)
Overall length:1,626 mm (64.0 inches)
Overall width:1,069 mm (42.1 inches)
Ground clearance:99 mm (3.9 inches)
Wheelbase:1,110 mm (43.7 inches)
Fuel capacity:9.08 litres (2.40 gallons)
Other specifications
Starter:Electric
Light:Dual 30W Krypton multireflector headlights and 21/5W brakelight
Factory warranty:6 Month (Limited Factory Warranty)
Color options:Team Yamaha Blue/White, White w/Graphics Kit
