11 Yamaha Raider S specificationsYamaha Raider S 2011

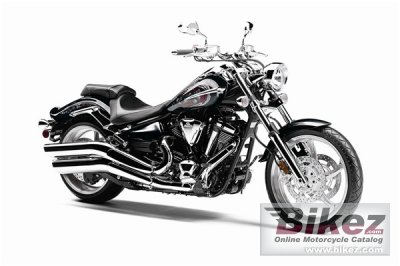

2011 Yamaha Raider S photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2011 Yamaha Raider S imageShow more 2011 Yamaha Raider S images
2011 Yamaha Raider S

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
S model gets even more chrome: chrome triple clamps, fork sliders, air box cover, engine covers, headlight housing, handlebar risers, etc..

General information
Model:Yamaha Raider S
Year:2011
Category:Custom / cruiser
Rating:75.2 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 15290. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1851.85 ccm (113.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets.
Compression:9.5:1
Bore x stroke:100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves per cylinder:4
Fuel system:Injection. Twin-Bore electronic fuel injection; throttle position sensor
Fuel control:OHV
Ignition:TCI: Transistor Controlled Ignition
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Emission details:0xygen sensor and three-way catalyst reduce emissions.
Chassis, suspension, brakes and wheels
Frame type:All-aluminum cast frame. Aluminum swingarm casting.
Front suspension:Telescopic fork
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Swingarm
Rear suspension travel:89 mm (3.5 inches)
Front tyre dimensions:120/70-21
Rear tyre dimensions:210/40-18
Front brakes:Double disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:310 mm (12.2 inches)
Wheels:5-spoke cast
Physical measures and capacities
Weight incl. oil, gas, etc:331.1 kg (730.0 pounds)
Seat height:696 mm (27.4 inches) If adjustable, lowest setting.
Overall height:1,166 mm (45.9 inches)
Overall length:2,570 mm (101.2 inches)
Overall width:925 mm (36.4 inches)
Wheelbase:1,801 mm (70.9 inches)
Fuel capacity:15.90 litres (4.20 gallons)
Other specifications
Starter:Electric
Instruments:Tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics.
Factory warranty:1 Year (Limited Factory Warranty)
Color options:Raven, Glacier Blue
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 11 Yamaha Raider S discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2011 Yamaha Raider S for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Yamaha bike
Offroad capabilities for the 2011 Yamaha Raider S:


(40.0 out of 100)

Click here for complete rating. You can also compare bikes.
