11 Yamaha Raider specificationsYamaha Raider 2011

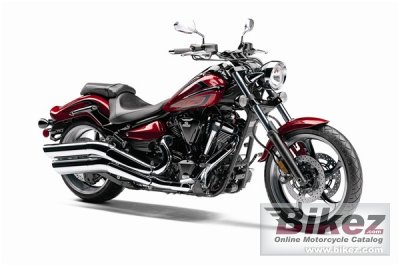

2011 Yamaha Raider photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2011 Yamaha Raider imageShow more 2011 Yamaha Raider images
2011 Yamaha Raider

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
The Raider was inspired by the custom chopper movement, but since itís a Star, it had to also handle, stop and go.

General information
Model:Yamaha Raider
Year:2011
Category:Custom / cruiser
Rating:73.9 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 14490. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1851.85 ccm (113.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Four pushrod-activated valves and two spark plugs per cylinder
Compression:9.5:1
Bore x stroke:100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves per cylinder:4
Fuel system:Injection. Twin-Bore electronic fuel injection; throttle position sensor
Fuel control:OHV
Ignition:TCI: Transistor Controlled Ignition
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Emission details:0xygen sensor and three-way catalyst reduce emissions.
Exhaust system:Two-into-one-into-two exhaust
Chassis, suspension, brakes and wheels
Frame type:Double cradle
Front suspension:Telescopic fork
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Swingarm
Rear suspension travel:89 mm (3.5 inches)
Front tyre dimensions:120/70-21
Rear tyre dimensions:210/40-18
Front brakes:Double disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:310 mm (12.2 inches)
Wheels:5-spoke cast
Physical measures and capacities
Weight incl. oil, gas, etc:331.1 kg (729.9 pounds)
Seat height:696 mm (27.4 inches) If adjustable, lowest setting.
Overall length:2,570 mm (101.2 inches)
Overall width:925 mm (36.4 inches)
Ground clearance:147 mm (5.8 inches)
Wheelbase:1,801 mm (70.9 inches)
Fuel capacity:15.90 litres (4.20 gallons)
Other specifications
Starter:Electric
Instruments:Tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics.
Light:Multireflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.
Factory warranty:1 Year (Limited Factory Warranty)
Color options:Reddish Copper
